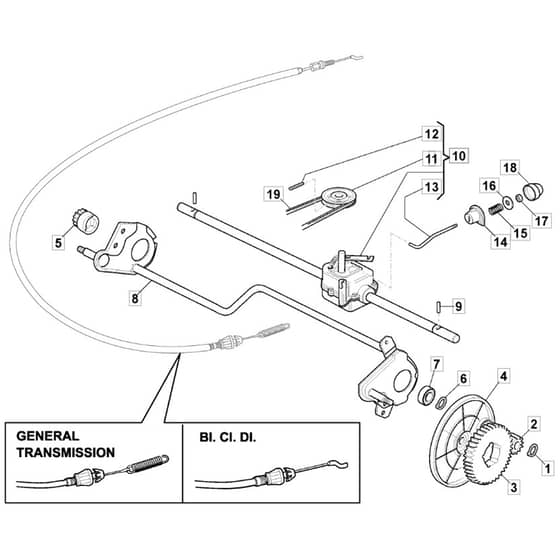

SP500 - 2012-2014 - 295502028/MFR - Mountfield Rotary Mower Transmission Diagram

SP500 - 2012-2014 - 295502028/MFR - Mountfield Rotary Mower Transmission Diagram
SP500 - 2012-2014 - 295502028/MFR - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield SP500 Parts Diagram

Product Name - SP 500

Model Year - 2012-2014

Model Type - PAN 504 TR

Art.N - 295502028/MFR

Ref. Img. Part No. Details
  2 Left Pinion MO122570120/1
Left Pinion
In stock
£7.03 £5.86

  3 Ring Gear MO122120105/2
Ring Gear
Out of stock
£9.44 £7.87

  4 Protection. Wheel MO322600268/0
Protection. Wheel
Out of stock
£3.95 £3.29

  5 Right Pinion MO322570138/0
Right Pinion
In stock
£7.03 £5.86

  6 Seeger MO112608600/0
Seeger
In stock
£1.48 £1.23

  7 Bearing MO119216035/0
Bearing
In stock
£3.35 £2.79

  8 Axle. Rear Wheels MO381302867/0
Axle. Rear Wheels
Out of stock
£50.93 £42.44

  9 Pin MO122753000/0
Pin
In stock
£1.48 £1.23

  10 Gear Box (Black) (General Transmission) - Black MO181003079/1
Gear Box (Black) (General Transmission) - Black
In stock
£94.19 £78.49

  10 Gear Box Bi.Ci.Di (Grey) (Bi. Ci. Di.) - Grey MO181003082/1
Gear Box Bi.Ci.Di (Grey) (Bi. Ci. Di.) - Grey
Out of stock
£121.19 £100.99

  11 Pulley MO122601909/0
Pulley
In stock
£5.35 £4.46

  12 Elastic Pin ø5X32 MO112645705/0
Elastic Pin ø5X32
Out of stock
£1.48 £1.23

  13 Adjustment Rod MO122033281/0
Adjustment Rod
Out of stock
£4.55 £3.79

  14 Bushing MO122041957/1
Bushing
Out of stock
£1.48 £1.23

  15 Spring MO122450063/0
Spring
Out of stock
£1.48 £1.23

  16 Washer MO322680009/0
Washer
Out of stock
£1.52 £1.27

  17 Nut MO112154510/0
Nut
In stock
£1.48 £1.23

  18 Hub Cover MO122110230/0
Hub Cover
In stock
£1.48 £1.23

  19 Trapezoidal Belt Z32 MO135064150/0
Trapezoidal Belt Z32
Out of stock
£10.72 £8.93


Description

Mountfield SP500 Parts Diagram

Product Name - SP 500

Model Year - 2012-2014

Model Type - PAN 504 TR

Art.N - 295502028/MFR
