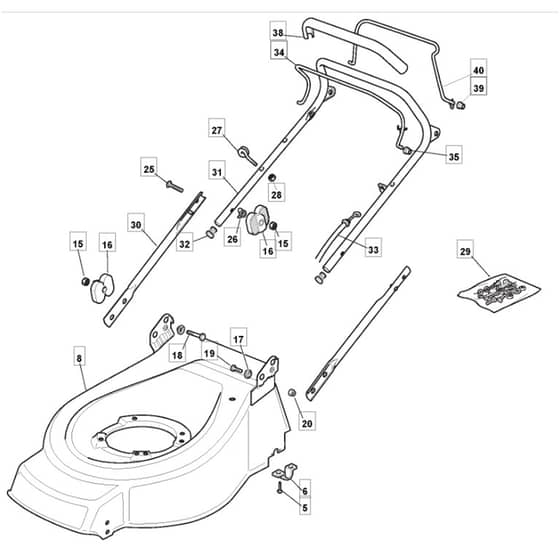

SP484 R - 2008 - 294489048/BQ - Mountfield Rotary Mower Upper Handle Diagram

Name: SP484 R - 2008 - 294489048/BQ - Mountfield Rotary Mower Upper Handle Diagram
SKU: sp484_r_294489048_bq_upper_handle-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP484 R - 2008 - 294489048/BQ - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield SP484 R Parts Diagram

Product Name - SP 484 R

Model Year - 2008

Model Type - TD 484 TR

Art.N - 294489048/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112731350/0 Out of stock	Screw	£1.49 £1.24
6	MO322545154/0 Out of stock	Plate	£1.49 £1.24
15	MO112293202/0 Out of stock	Nut	£1.90 £1.58
16	MO122399803/0 Out of stock	Knob	£1.63 £1.36
17	MO322041955/0 Out of stock	Bushing	£1.49 £1.24
19	MO112792610/0 Out of stock	Screw	£1.49 £1.24
20	MO112155000/0 In stock	Nut	£1.49 £1.24
25	MO112819125/0 Out of stock	Screw	£1.39 £1.16
26	MO122680006/1 In stock	Washer	£1.75 £1.46
27	MO122430309/0 Out of stock	Spring	£2.98 £2.48
28	MO112154330/0 Out of stock	Nut	£1.49 £1.24
32	MO118566112/0 Out of stock	Polyethylene Push Road D.20Inch	£1.49 £1.24
33	MO181000611/0 In stock	Cable. Thread Engine Brake SV40 . RV 40 . V35 Engine	£13.34 £11.12
34	MO181003291/3 Out of stock	Lever. Engine Brake From 01-9-2006	£14.35 £11.96
35	MO122041966/0 In stock	Bushing	£1.49 £1.24
38	MO122291050/0 Out of stock	Handgrip Black	£13.68 £11.40
39	MO322041965/1 Out of stock	Bushing From 01-9-2004	£1.49 £1.24
40	MO181003288/1 Out of stock	Drive Control Lever	£11.17 £9.31
