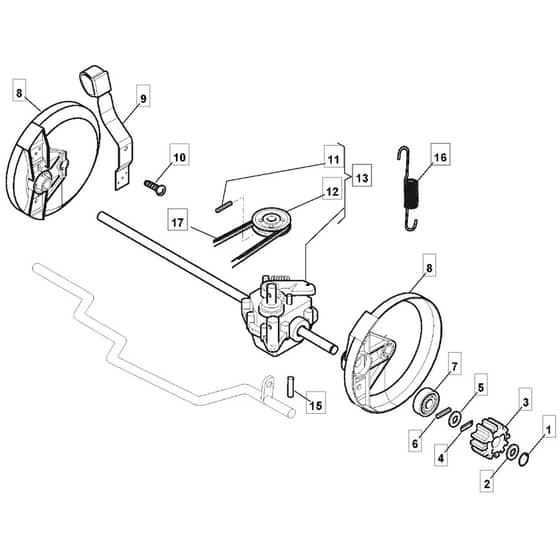

SP470 ES - 2006 - 299324728/BQ - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield SP470 ES Parts Diagram

Product Name - SP 470 ES

Model Year - 2006

Model Type - ES 464 TR/E

Art.N - 299324728/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608520/0 Out of stock	Seeger	£2.68 £2.23
3	MO122570125/0 In stock	Pinion	£13.93 £11.61
4	MO122076645/0 In stock	Key	£1.61 £1.34
5	MO322160520/0 Out of stock	Dust Cover Disc	£1.66 £1.38
6	MO112622620/0 Out of stock	Pin	£1.34 £1.12
7	MO122122202/0 Out of stock	Bearing	£2.00 £1.67
8	MO322600106/1 Out of stock	Protection. Wheel	£6.36 £5.30
9	MO381003303/0 Out of stock	Lever. Height Adjustment	£16.43 £13.69
10	MO112728689/0 Out of stock	Screw	£1.34 £1.12
11	MO112713801/0 Out of stock	Grub Screw	£2.15 £1.79
12	MO122601909/0 In stock	Pulley	£5.35 £4.46
13	MO181003093/1 Out of stock	Gear Box From 01-9-2008	£97.75 £81.46
13	MO181003078/0 Out of stock	Gear Box F.R. To 31-8-2006	£199.40 £166.17
15	MO122753001/0 Out of stock	Pin	£1.48 £1.23
16	MO122450432/0 In stock	Spring To 31-8-2007	£1.87 £1.56
16	MO122450438/0 Out of stock	Spring From 01-9-2007	£3.48 £2.90
17	MO135063750/0 In stock	Trapezoidal Belt X10 Lp.680	£10.04 £8.37
17	MO135063170/0 Out of stock	Trapezoidal Belt From 01-9-2006 To 31-8-2007	£8.36 £6.97
