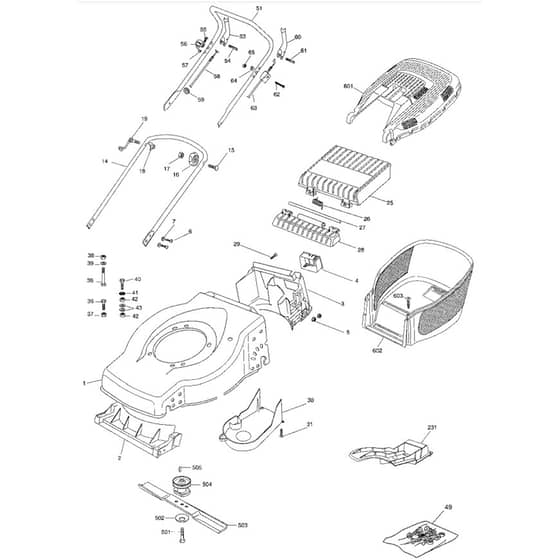

Mountfield SP470 Parts Diagram

Product Name - SP 470

Model Year - 2005

Model Type -

Art.N - 24-3881-01

Ref. Img. Part No. Details
  2 Front Baffle
Front Baffle
MO322108271/0 Out of stock
Front Baffle
£12.73 £10.61

  3 Rear Baffle
Rear Baffle
MO322108272/2 Out of stock
Rear Baffle
£20.34 £16.95

  4 Battery Holder
Battery Holder
MO322109531/0 Out of stock
Battery Holder
£14.34 £11.95

  5 Nut
Nut
MO122131750/0 In stock
Nut
£1.87 £1.56

  6 Bolt
Bolt
MO112760605/0 In stock
Bolt
£3.22 £2.68

  14 Handle-Lower
Handle-Lower
MO381006686/0 Out of stock
Handle-Lower
£39.47 £32.89

  15 Screw
Screw
MO112819201/0 Out of stock
Screw
£2.68 £2.23

  16 Knob
Knob
MO122399900/0 In stock
Knob
£1.48 £1.23

  18 Washer
Washer
MO122680006/1 In stock
Washer
£1.74 £1.45

  19 Screw
Screw
MO181003801/1 In stock
Screw
£3.18 £2.65

  26 Spring-Rear Flap
Spring-Rear Flap
MO122450431/0 Out of stock
Spring-Rear Flap
£6.96 £5.80

  27 Shaft For Rear Flap
Shaft For Rear Flap
MO122517858/0 Out of stock
Shaft For Rear Flap
£5.09 £4.24

  28 Rear Flap Holder (Black)
Rear Flap Holder (Black)
MO322785136/1 In stock
Rear Flap Holder (Black)
Was £3.18 £2.65 Special Price £2.04 £1.70

  30 Belt Cover
Belt Cover
MO322060212/0 In stock
Belt Cover
£7.24 £6.03

  36 Screw
Screw
MO112793701/0 Out of stock
Screw
£1.48 £1.23

  37 Nut
Nut
MO112293201/0 In stock
Nut
£1.61 £1.34

  38 Lock Nut
Lock Nut
MO112155000/0 In stock
Lock Nut
£1.48 £1.23

  39 Washer
Washer
MO112521350/0 In stock
Washer
£1.48 £1.23

  40 Bolt
Bolt
MO112775000/0 Out of stock
Bolt
£1.87 £1.56

  41 Lock Washer
Lock Washer
MO112540060/0 Out of stock
Lock Washer
£1.48 £1.23

  42 Nut
Nut
MO112293200/0 In stock
Nut
£1.48 £1.23

  43 Washer
Washer
MO122671651/0 In stock
Washer
£1.87 £1.56

  49 Assy Kit
Assy Kit
MO381008648/1 Out of stock
Assy Kit
£12.73 £10.61

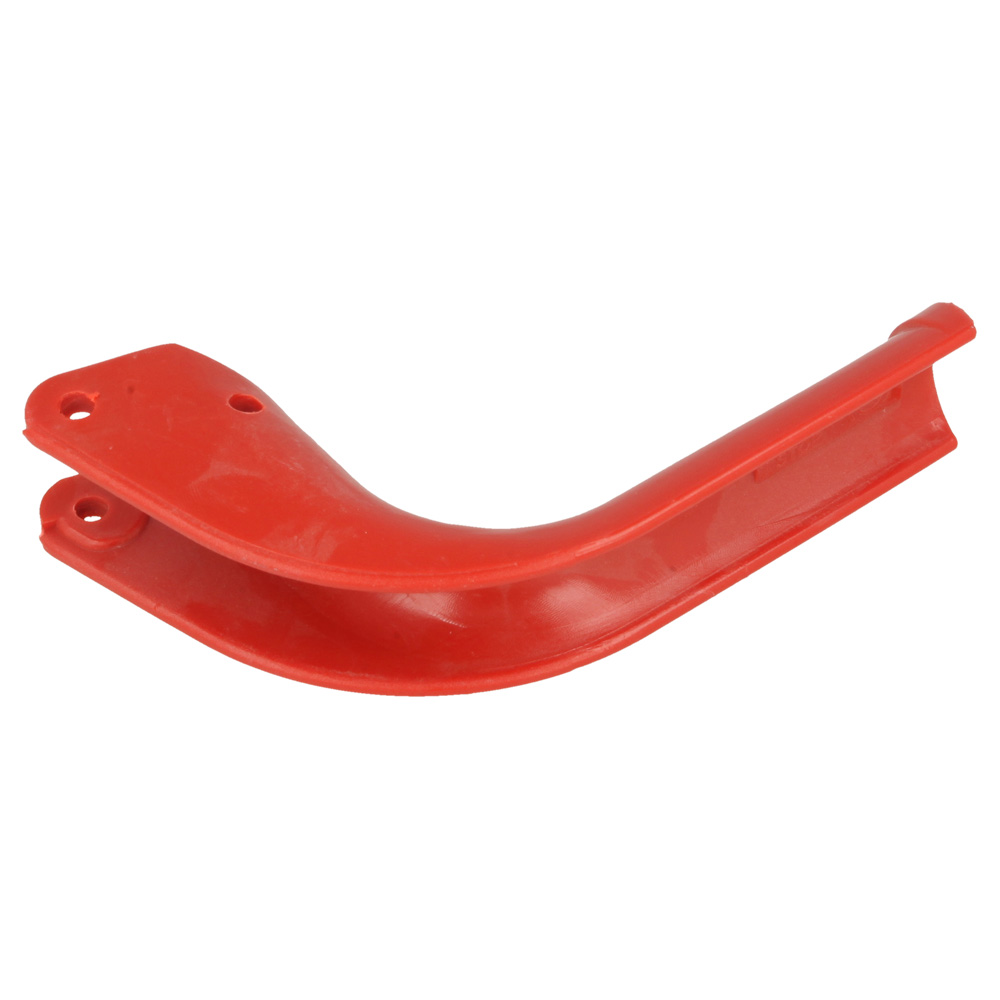

  53 Lever. Rear Drive
Lever. Rear Drive
MO322321701/0 Out of stock
Lever. Rear Drive
£2.29 £1.91

  56 Support
Support
MO322806521/0 Out of stock
Support
£1.79 £1.49

  58 Clutch Cable
Clutch Cable
MO381000654/0 In stock
Clutch Cable
£19.15 £15.96

  59 Wire Sleeve
Wire Sleeve
MO118564520/1 Out of stock
Wire Sleeve
£4.55 £3.79

  60 Opc Lever (Red)
Opc Lever (Red)
MO322321700/1 In stock
Opc Lever (Red)
£3.31 £2.76

  61 Locating Pin
Locating Pin
MO112645710/0 In stock
Locating Pin
£2.00 £1.67

  62 Screw
Screw
MO112674700/0 Out of stock
Screw
£1.48 £1.23

  63 Cable. Thread Engine Brake
Cable. Thread Engine Brake
MO181000681/0 In stock
Cable. Thread Engine Brake
£13.39 £11.16

  64 Washer
Washer
MO112521330/0 Out of stock
Washer
£1.48 £1.23

  65 Nut
Nut
MO112292100/0 Out of stock
Nut
£1.34 £1.12

  231 Mulch Plug (Yellow)
Mulch Plug (Yellow)
MO322140226/0 In stock
Mulch Plug (Yellow)
£19.73 £16.44

  501 Screw
Screw
MO112735698/0 In stock
Screw
£1.74 £1.45

  502 Spring Washer
Spring Washer
MO112369600/0 Out of stock
Spring Washer
£3.89 £3.24

  503 Blade
Blade
MO181004121/0 In stock
Blade
£12.72 £10.60

  505 Key
Key
MO112139100/0 In stock
Key
£1.48 £1.23

  601 Grassbag-Upper (Red Ral3003)
Grassbag-Upper (Red Ral3003)
MO322486126/0 Out of stock
Grassbag-Upper (Red Ral3003)
£50.93 £42.44

  602 Lower Grass Bag (Black)
Lower Grass Bag (Black)
MO322486128/0 Out of stock
Lower Grass Bag (Black)
£31.82 £26.52
