Description

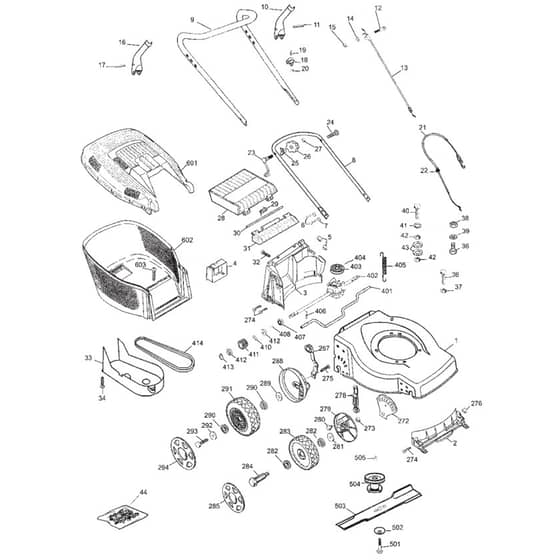

Mountfield SP470 Parts Diagram

Product Name - SP 470

Model Year - 2004

Model Type -

Art.N - 24-3881-00

Ref. Img. Part No. Details
  2 Front Baffle
Front Baffle
MO322108271/0 Out of stock
Front Baffle
£12.73 £10.61

  3 Rear Baffle
Rear Baffle
MO322108272/2 Out of stock
Rear Baffle
£20.34 £16.95

  4 Battery Holder
Battery Holder
MO322109531/0 Out of stock
Battery Holder
£14.34 £11.95

  6 Bolt
Bolt
MO112760605/0 In stock
Bolt
£3.22 £2.68

  8 Handle-Lower
Handle-Lower
MO381006686/0 In stock
Handle-Lower
£39.47 £32.89

  10 Opc Lever (Red)
Opc Lever (Red)
MO322321700/1 In stock
Opc Lever (Red)
£3.31 £2.76

  12 Screw
Screw
MO112674700/0 Out of stock
Screw
£1.48 £1.23

  13 Cable. Thread Engine Brake
Cable. Thread Engine Brake
MO181000681/0 In stock
Cable. Thread Engine Brake
£13.39 £11.16

  14 Washer
Washer
MO112521330/0 Out of stock
Washer
£1.48 £1.23

  16 Lever. Rear Drive
Lever. Rear Drive
MO322321701/0 Out of stock
Lever. Rear Drive
£2.29 £1.91

  17 Locating Pin
Locating Pin
MO112645710/0 In stock
Locating Pin
£2.00 £1.67

  18 Support
Support
MO322806521/0 Out of stock
Support
£1.79 £1.49

  20 Nut
Nut
MO112292100/0 Out of stock
Nut
£1.34 £1.12

  21 Clutch Cable
Clutch Cable
MO381000654/0 In stock
Clutch Cable
£19.15 £15.96

  23 Screw
Screw
MO181003801/1 In stock
Screw
£3.18 £2.65

  24 Screw
Screw
MO112819201/0 Out of stock
Screw
£2.68 £2.23

  25 Washer
Washer
MO122680006/1 In stock
Washer
£1.74 £1.45

  26 Knob
Knob
MO122399900/0 In stock
Knob
£1.48 £1.23

  28 Rear Flap (Black)
Rear Flap (Black)
MO322600099/2 Out of stock
Rear Flap (Black)
£4.58 £3.82

  29 Spring-Rear Flap
Spring-Rear Flap
MO122450431/0 Out of stock
Spring-Rear Flap
£6.96 £5.80

  30 Shaft For Rear Flap
Shaft For Rear Flap
MO122517858/0 Out of stock
Shaft For Rear Flap
£5.09 £4.24

  31 Rear Flap Holder (Black)
Rear Flap Holder (Black)
MO322785136/1 In stock
Rear Flap Holder (Black)
Was £3.18 £2.65 Special Price £2.04 £1.70

  33 Belt Cover
Belt Cover
MO322060212/0 In stock
Belt Cover
£7.24 £6.03

  36 Screw
Screw
MO112793701/0 Out of stock
Screw
£1.48 £1.23

  37 Nut
Nut
MO112293201/0 In stock
Nut
£1.61 £1.34

  39 Washer
Washer
MO112521350/0 In stock
Washer
£1.48 £1.23

  40 Bolt
Bolt
MO112775000/0 Out of stock
Bolt
£1.87 £1.56

  41 Lock Washer
Lock Washer
MO112540060/0 Out of stock
Lock Washer
£1.48 £1.23

  42 Nut
Nut
MO112293200/0 In stock
Nut
£1.48 £1.23

  44 Assy Kit
Assy Kit
MO381008648/1 Out of stock
Assy Kit
£12.73 £10.61

  272 Sector
Sector
MO322735557/0 Out of stock
Sector
£3.31 £2.76

  273 Nut
Nut
MO9716-0831-02 Out of stock
Nut
£5.60 £4.67

  275 Screw
Screw
MO112728689/0 Out of stock
Screw
£1.34 £1.12

  276 Nut
Nut
MO122131750/0 In stock
Nut
£1.87 £1.56

  278 Lever. Height Adjustment
Lever. Height Adjustment
MO381003306/0 In stock
Lever. Height Adjustment
£5.99 £4.99

  279 Wheel Plate
Wheel Plate
MO322600170/0 In stock
Wheel Plate
£9.55 £7.96

  280 Shoulder Bolt
Shoulder Bolt
MO122524324/0 Out of stock
Shoulder Bolt
£4.02 £3.35

  281 Washer
Washer
MO122671651/0 In stock
Washer
£1.87 £1.56

  282 Bushing
Bushing
MO322034509/0 In stock
Bushing
£1.52 £1.27

  283 Wheel
Wheel
MO322686091/1 In stock
Wheel
£6.42 £5.35

  284 Wheel Bolt
Wheel Bolt
MO122524322/0 Out of stock
Wheel Bolt
£4.15 £3.46

  285 Hub Cap 175 (Grey) 7-11 2
Hub Cap 175 (Grey) 7-11 2
MO322110312/0 Out of stock
Hub Cap 175 (Grey) 7-11 2
£9.17 £7.64

  287 Lever. Height Adjustment
Lever. Height Adjustment
MO381003303/0 Out of stock
Lever. Height Adjustment
£16.43 £13.69

  288 Wheel Cover
Wheel Cover
MO322600106/1 Out of stock
Wheel Cover
£6.36 £5.30

  289 Washer
Washer
MO112521370/0 Out of stock
Washer
£1.48 £1.23

  291 Wheel
Wheel
MO381007361/0 Out of stock
Wheel
£20.24 £16.87

  292 Washer
Washer
MO112523050/0 In stock
Washer
£1.48 £1.23

  293 Screw
Screw
MO112735599/0 Out of stock
Screw
£1.48 £1.23

  401 Shaft-Backside
Shaft-Backside
MO122033393/0 Out of stock
Shaft-Backside
£23.83 £19.86

  402 Transmission Assy
Transmission Assy
MO181003078/0 Out of stock
Transmission Assy
£199.40 £166.17

  403 Pulley
Pulley
MO122601912/0 Out of stock
Pulley
£33.48 £27.90

  404 Pin
Pin
MO112645705/0 Out of stock
Pin
£1.48 £1.23

  405 Spring
Spring
MO122450432/0 In stock
Spring
£1.87 £1.56

  406 Locating Pin
Locating Pin
MO122753001/0 Out of stock
Locating Pin
£1.48 £1.23

  407 Ball Bearing
Ball Bearing
MO122122202/0 Out of stock
Ball Bearing
£2.00 £1.67

  408 Pin
Pin
MO112622620/0 Out of stock
Pin
£1.34 £1.12

  410 Key
Key
MO122076645/0 In stock
Key
£1.61 £1.34

  411 Gear Wheel
Gear Wheel
MO122570125/0 In stock
Gear Wheel
£13.93 £11.61

  412 Washer
Washer
MO322160520/0 Out of stock
Washer
£1.66 £1.38

  413 Circlip
Circlip
MO112608520/0 Out of stock
Circlip
£2.68 £2.23

  414 V-Belt
V-Belt
MO135064000/0 Out of stock
V-Belt
£10.98 £9.15

  501 Screw
Screw
MO112735698/0 In stock
Screw
£1.74 £1.45

  502 Spring Washer
Spring Washer
MO112369600/0 Out of stock
Spring Washer
£3.89 £3.24

  503 Blade
Blade
MO181004121/0 In stock
Blade
£12.72 £10.60

  505 Key
Key
MO112139100/0 In stock
Key
£1.48 £1.23

  601 Grassbag-Upper (Black)
Grassbag-Upper (Black)
MO322486122/0 In stock
Grassbag-Upper (Black)
£25.21 £21.01

  602 Lower Grass Bag (Black)
Lower Grass Bag (Black)
MO322486128/0 Out of stock
Lower Grass Bag (Black)
£31.82 £26.52
