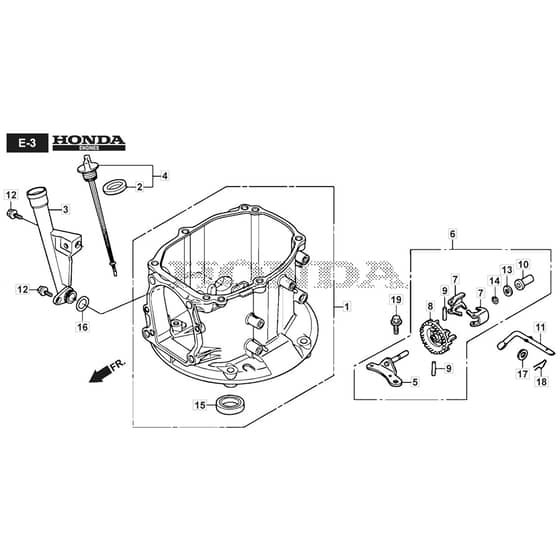

SP465 R - 2019-2021 - 299489038/M19 - Mountfield Rotary Mower Crankcase Diagram

Name: SP465 R - 2019-2021 - 299489038/M19 - Mountfield Rotary Mower Crankcase Diagram
SKU: sp465_r_299489038_m19_crankcase-group
Price: 0.91 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP465 R - 2019-2021 - 299489038/M19 - Mountfield Rotary Mower Crankcase Diagram

Description

Mountfield SP465 R Parts Diagram

Product Name - SP 465 R

Model Year - 2019-2021

Model Type - NTL 484 TR-R

Art.N - 299489038/M19

Engine Model - GCVx145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11100-Z9L-415 Out of stock	Crankcase Assy.	£351.06 £292.55
2	HP15625-ZE6-000 Out of stock	Packing. Oil Filler Cap	£3.16 £2.63
3	HP15631-Z9L-000 Out of stock	Extension. Oil Filler	£19.73 £16.44
4	HP15650-Z9L-000 Out of stock	Gauge Assy. Oil Level	£11.09 £9.24
5	HP16508-ZM0-010 Out of stock	Shaft Comp. Governor Holder	£7.31 £6.09
6	HP16510-ZM0-010 Out of stock	Governor Assy.	£23.15 £19.29
7	HP16511-ZL8-000 Out of stock	Weight. Governor	£1.80 £1.50
8	HP16512-ZM0-000 Out of stock	Holder. Governor Weight	£6.34 £5.28
9	HP16513-ZE1-000 Out of stock	Pin. Governor Weight	£2.32 £1.93
10	HP16531-Z1T-000 Out of stock	Slider. Governor	£4.73 £3.94
11	HP16541-Z9L-000 Out of stock	Shaft. Governor Arm	£4.56 £3.80
12	HP90013-ZL8-000 Out of stock	Bolt. Flange. 6X14 (Ct200)	£1.30 £1.08
13	HP90451-Z1T-000 Out of stock	Washer. Thrust. 6mm	£2.08 £1.73
14	HP90602-ZE1-000 Out of stock	Clip. Governor Holder	£3.91 £3.26
15	HP91202-Z9L-003 In stock	Oil Seal. 28X41.25X6	£15.68 £13.07
16	HP91301-Z9L-000 Out of stock	O-Ring. 19.1X2.2	£1.76 £1.47
17	HP94101-06800 Out of stock	Washer. Plain. 6mm	£1.09 £0.91
18	HP94251-08000 Out of stock	Pin. Lock. 8mm	£1.75 £1.46
19	HP95701-0601408 Out of stock	Flange Bolt 6 X 14	£1.50 £1.25
