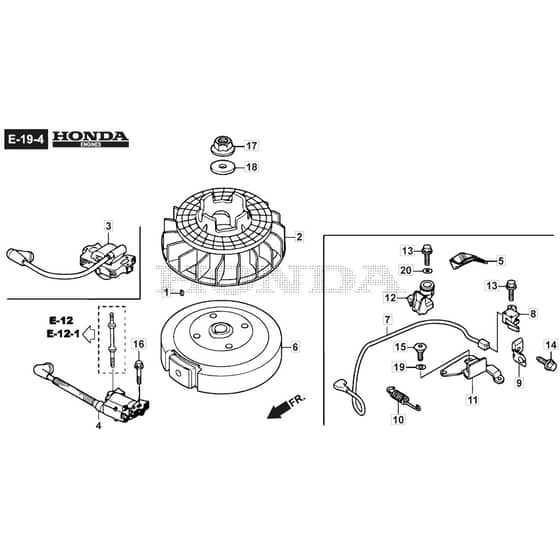

SP465 - 2015 - 299482338/M15 - Mountfield Rotary Mower Flywheel GCV160A0 S4 GB SD Diagram

Name: SP465 - 2015 - 299482338/M15 - Mountfield Rotary Mower Flywheel GCV160A0 S4 GB SD Diagram
SKU: sp465_299482338_m15_flywheel_gcv160a0_s4_gb_sd-group
Price: 0.91 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP465 - 2015 - 299482338/M15 - Mountfield Rotary Mower Flywheel GCV160A0 S4 GB SD Diagram

Description

Mountfield SP465 Parts Diagram

Product Name - SP 465

Model Year - 2015

Model Type - NTL 484 TR

Art.N - 299482338/M15

Engine Model - Honda GCV 160 Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP13331-Z8B-900	Key. Special Woodruff. 25X18	Out of stock	£2.28 £1.90
2	HP19511-Z8B-900	Fan. Cooling	Out of stock	£55.69 £46.41
3	HP30500-Z8B-903	Coil Assy. Ignition (Phelon)	Out of stock	£91.56 £76.30
5	HP30549-Z8B-900	Clamper. Cord	Out of stock	£4.73 £3.94
6	HP31110-Z0Y-003	Flywheel Comp. (Phelon)	Out of stock	£121.20 £101.00
7	HP32195-Z8B-901	Cord. Stop Switch	Out of stock	£7.63 £6.36
8	HP35120-Z8B-902	Switch Assy. Engine Stop	Out of stock	£18.38 £15.32
9	HP43416-Z8B-900	Bracket. Brake Cable	Out of stock	£30.79 £25.66
10	HP75113-Z8B-900	Spring. Brake Lever	Out of stock	£2.28 £1.90
11	HP75120-Z8B-901	Arm Comp. Brake	Out of stock	£23.11 £19.26
12	HP75573-Z8B-901	Spring. Tensioner	Out of stock	£3.31 £2.76
13	HP90001-Z8B-900	Bolt. Special. 5X16	Out of stock	£4.43 £3.69
14	HP90007-Z8B-900	Bolt. Flange. 6X14	Out of stock	£3.08 £2.57
15	HP90009-Z8B-900	Bolt. Special	Out of stock	£1.15 £0.96
16	HP90018-ZE1-000	Bolt. Flange. 6X23 (Ct200)	Out of stock	£3.52 £2.93
17	HP90201-Z0T-800	Nut. Special. 14mm	Out of stock	£7.60 £6.33
18	HP90401-Z8B-900	Washer. 14X45	Out of stock	£13.84 £11.53
19	HP90402-Z8B-900	Washer. Special	Out of stock	£2.08 £1.73
20	HP94103-05800	Plain Washer 5mm	Out of stock	£1.09 £0.91
