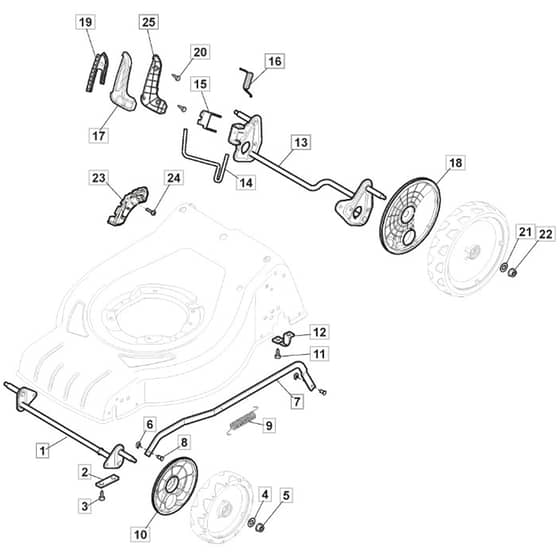

SP46 LS - 2019 - 295496548/M19 - Mountfield Rotary Mower Height Adjusting Diagram

SP46 LS - 2019 - 295496548/M19 - Mountfield Rotary Mower Height Adjusting Diagram
SP46 LS - 2019 - 295496548/M19 - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield SP46 LS Parts Diagram

Product Name - SP46 LS

Model Year - 2019

Model Type - CSL 484 WSE

Art.N - 295496548/M19

Engine Model - ST 170 LS OHV Autochoke

Ref. Img. Part No. Details
  1 Front Wheel Axle From S.N 20BA2WBH054316
Front Wheel Axle From S.N 20BA2WBH054316
MO381302821/1 Out of stock
Front Wheel Axle From S.N 20BA2WBH054316
£26.74 £22.28

  1 Front Wheel Axle To S.N 20BA2WBH054315
Front Wheel Axle To S.N 20BA2WBH054315
MO381302821/0 Out of stock
Front Wheel Axle To S.N 20BA2WBH054315
£26.74 £22.28

  2 Plate
Plate
MO322545142/0 Out of stock
Plate
£1.66 £1.38

  6 Plate
Plate
MO112436050/0 In stock
Plate
£1.74 £1.45

  7 Rod. Height Adjustment To S.N 20BA2WBH070094
Rod. Height Adjustment To S.N 20BA2WBH070094
MO322869673/0 Out of stock
Rod. Height Adjustment To S.N 20BA2WBH070094
£15.02 £12.52

  7 Rod. Height Adjustment From S.N 20BA2WBH070583
Rod. Height Adjustment From S.N 20BA2WBH070583
MO322869673/1 Out of stock
Rod. Height Adjustment From S.N 20BA2WBH070583
£14.77 £12.31

  8 Pin
Pin
MO122519820/0 Out of stock
Pin
£2.00 £1.67

  9 Spring
Spring
MO122446193/0 Out of stock
Spring
£4.55 £3.79

  10 Protection. Wheel As Optional
Protection. Wheel As Optional
MO322600247/0 Out of stock
Protection. Wheel As Optional
£4.33 £3.61

  11 Screw
Screw
MO112728698/0 In stock
Screw
£1.48 £1.23

  12 Plate
Plate
MO322545152/0 In stock
Plate
£1.66 £1.38

  13 Rear Wheel Axle To S.N 20BA2WBH061216
Rear Wheel Axle To S.N 20BA2WBH061216
MO381302817/0 Out of stock
Rear Wheel Axle To S.N 20BA2WBH061216
£30.55 £25.46

  13 Rear Wheel Axle From S.N 20BA2WBH061217
Rear Wheel Axle From S.N 20BA2WBH061217
MO381302817/1 Out of stock
Rear Wheel Axle From S.N 20BA2WBH061217
£29.28 £24.40

  14 Lever. Height Adjustment
Lever. Height Adjustment
MO322321553/0 Out of stock
Lever. Height Adjustment
£3.06 £2.55

  15 Plate
Plate
MO322557179/0 Out of stock
Plate
£2.42 £2.02

  16 Spring
Spring
MO122446198/1 Out of stock
Spring
£1.61 £1.34

  17 Upper Handgrip Black
Upper Handgrip Black
MO322394550/0 Out of stock
Upper Handgrip Black
£2.54 £2.12

  18 Protection. Wheel
Protection. Wheel
MO322600205/1 Out of stock
Protection. Wheel
£3.70 £3.08

  19 Handgrip Black
Handgrip Black
MO322394551/0 Out of stock
Handgrip Black
£1.66 £1.38

  20 Screw
Screw
MO112728696/0 Out of stock
Screw
£1.48 £1.23

  21 Washer
Washer
MO112521350/0 In stock
Washer
£1.48 £1.23

  22 Nut
Nut
MO112155000/0 In stock
Nut
£1.48 £1.23

  23 Sector. Height Adjustment
Sector. Height Adjustment
MO322735606/0 Out of stock
Sector. Height Adjustment
£2.42 £2.02

  24 Screw
Screw
MO112728697/0 In stock
Screw
£1.48 £1.23

  25 Lower H/Adj Knob Use 322394559/0
Lower H/Adj Knob Use 322394559/0
MO322394559/0 Out of stock
Lower H/Adj Knob Use 322394559/0
£2.04 £1.70


Description

Mountfield SP46 LS Parts Diagram

Product Name - SP46 LS

Model Year - 2019

Model Type - CSL 484 WSE

Art.N - 295496548/M19

Engine Model - ST 170 LS OHV Autochoke
