SP46 H - 2016-2017 - 295496038/SF - Mountfield Rotary Mower Fuel Tank Diagram

Name: SP46 H - 2016-2017 - 295496038/SF - Mountfield Rotary Mower Fuel Tank Diagram
SKU: sp46_h_295496038_sf_fuel_tank-group
Price: 0.92 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP46 H - 2016-2017 - 295496038/SF - Mountfield Rotary Mower Fuel Tank Diagram

Description

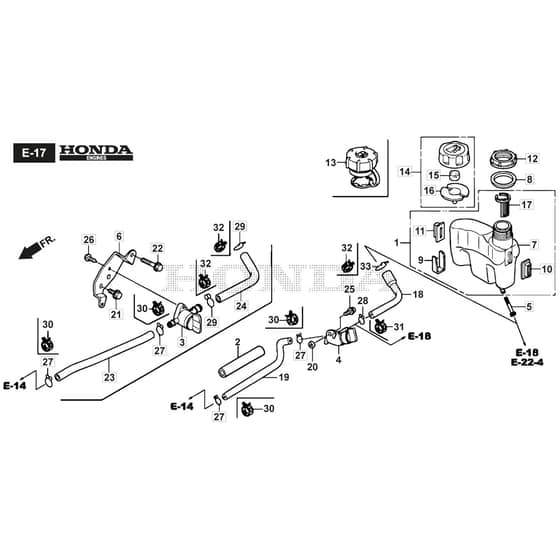

Mountfield SP46 H Parts Diagram

Product Name - SP46H

Model Year - 2016-2017

Model Type - CSL 484 WS

Art.N - 295496038/SF

Engine Model - Honda GCV 160 Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16950-Z0Y-003 Out of stock	Cock Assy. Fuel	£42.88 £35.73
5	HP16952-Z8B-000 Out of stock	Strainer. Fuel	£8.66 £7.22
6	HP16961-Z0L-900 Out of stock	Stay. Fuel Cock	£21.90 £18.25
7	HP17511-Z8B-801 Out of stock	Tank. Fuel	£61.92 £51.60
8	HP17514-Z0L-000 Out of stock	Seal. Fuel Filler Neck	£13.24 £11.03
10	HP17532-Z8B-800 Out of stock	Rubber A. Tank Mounting	£4.16 £3.47
11	HP17533-Z8B-800 Out of stock	Rubber B. Tank Mounting	£6.07 £5.06
12	HP17534-Z0L-000 Out of stock	Nut. Tank Mounting	£2.82 £2.35
14	HP17620-ZL8-023 In stock	Cap Assy. Fuel Tank	£13.94 £11.62
15	HP17622-888-010 Out of stock	Sponge. Fuel Cap Breather	£1.68 £1.40
16	HP17624-ZE7-000 Out of stock	Packing. Fuel Cap	£3.61 £3.01
17	HP17636-Z0L-010 Out of stock	Gauge. Fuel Level	£12.40 £10.33
21	HP90013-883-000 Out of stock	Bolt. Flange. 6X12 (Ct200)	£4.63 £3.86
22	HP90015-883-000 Out of stock	Bolt. Flange. 6X28 (Ct200)	£4.24 £3.53
23	HP16840-Z8B-900 Out of stock	Tube. Fuel. 4.5X110	£12.38 £10.32
24	HP17700-Z8B-900 Out of stock	Tube. Fuel. 7.3X160	£4.25 £3.54
26	HP93913-252-20 Out of stock	Screw. Tapping. 5X12 (Po)	£1.42 £1.18
27	HP95002-50000 Out of stock	Clip. Tube (C9)	£1.10 £0.92
29	HP95002-02130 Out of stock	Tube Clip	£1.44 £1.20
