SP46 ELITE - 2019-2023 - 2L0486038/M19 - Mountfield Rotary Mower Height Adjusting Diagram

Description

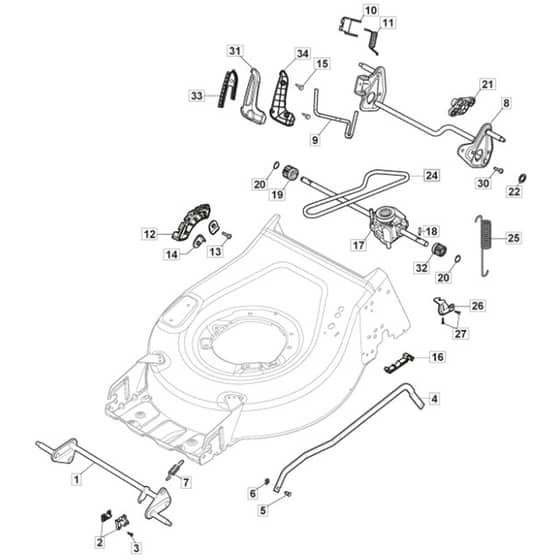

Mountfield SP46 ELITE Parts Diagram

Product Name - SP46 Elite

Model Year - 2019-2023

Model Type - CP1 484 WS

Art.N - 2L0486038/M19

Engine Model - GCVx145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302935/1 Out of stock	Axle. Front Wheels	£28.44 £23.70
2	MO322785305/1 In stock	Support	£2.58 £2.15
4	MO322869737/1 Out of stock	Rod. Height Adjustment	£17.47 £14.56
5	MO122519823/0 In stock	Pin	£2.17 £1.81
6	MO112000930/0 In stock	Benzing Ring	£1.49 £1.24
7	MO122450494/0 Out of stock	Spring	£4.60 £3.83
8	MO381302849/1 Out of stock	Rear Wheel Axle	£48.76 £40.63

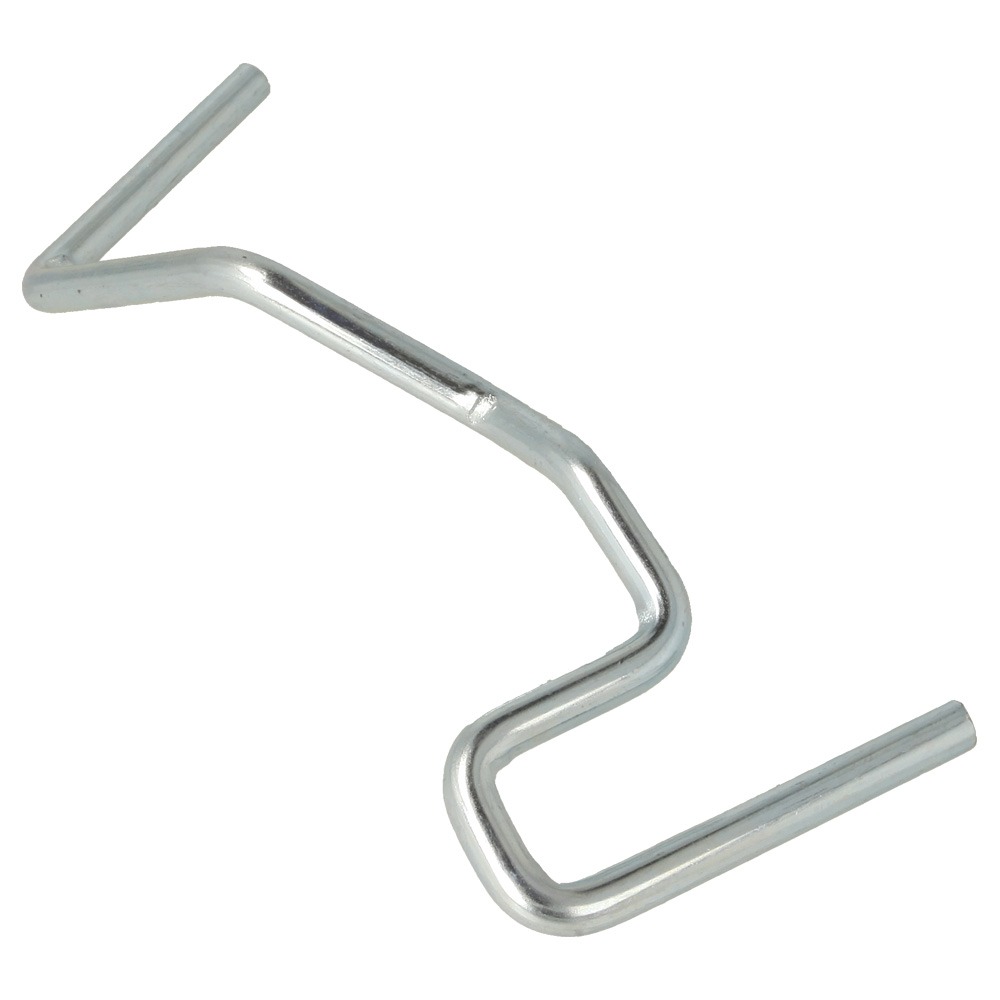

9	MO322321555/3 Out of stock	Lever. Height Adjustment	£3.25 £2.71
10	MO322557181/0 Out of stock	Plate	£2.04 £1.70
11	MO122446198/1 Out of stock	Spring	£1.63 £1.36
12	MO322735608/0 Out of stock	Sector. Height Adjustment	£2.04 £1.70
13	MO112727807/0 Out of stock	Screw	£1.49 £1.24
14	MO322545232/2 Out of stock	Plate	£1.49 £1.24
15	MO112728696/0 Out of stock	Screw	£1.49 £1.24
16	MO322785500/0 Out of stock	Support	£1.75 £1.46
17	MO181003134/0 Out of stock	Gear Box Dog Clutch	£94.81 £79.01
18	MO122753000/0 In stock	Pin	£1.49 £1.24
19	MO122570133/0 In stock	Right Pinion	£7.24 £6.03
20	MO112608600/0 Out of stock	Seeger	£1.49 £1.24
21	MO322042067/0 In stock	Bushing	£4.07 £3.39
22	MO112521371/0 Out of stock	Washer	£1.49 £1.24
24	MO135063800/0 In stock	Trapezoidal Belt	£8.90 £7.42
24	MO1111-9123-01 Out of stock	Drive Belt Stiga Packed into 135063800.0	£8.90 £7.42
25	MO122430254/0 Out of stock	Spring	£3.92 £3.27
26	MO322778473/1 Out of stock	Bracket	£2.04 £1.70
27	MO112728904/0 Out of stock	Screw	£1.49 £1.24
30	MO112728697/0 In stock	Screw	£1.49 £1.24
31	MO322394550/0 Out of stock	Upper Handgrip Black	£2.58 £2.15
32	MO122570134/0 In stock	Left Pinion	£7.24 £6.03
33	MO322394551/0 Out of stock	Handgrip	£1.90 £1.58
34	MO322394559/0 Out of stock	Lower Height Adjust Knob [Black]	£2.04 £1.70
