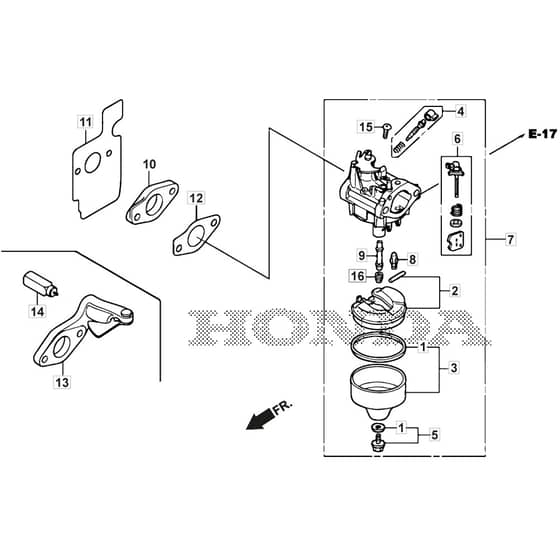

SP46 ELITE - 2019-2023 - 2L0486038/M19 - Mountfield Rotary Mower Carburettor Diagram

SP46 ELITE - 2019-2023 - 2L0486038/M19 - Mountfield Rotary Mower Carburettor Diagram
SP46 ELITE - 2019-2023 - 2L0486038/M19 - Mountfield Rotary Mower Carburettor Diagram

Description

Mountfield SP46 ELITE Parts Diagram

Product Name - SP46 Elite

Model Year - 2019-2023

Model Type - CP1 484 WS

Art.N - 2L0486038/M19

Engine Model - GCVx145 OHV Autochoke

Ref. Img. Part No. Details
  1 Gasket Set
Gasket Set
HP16010-Z9L-811 In stock
Gasket Set
£4.44 £3.70

  2 Float Set
Float Set
HP16013-ZL1-003 Out of stock
Float Set
£38.29 £31.91

  3 Chamber Set. Float
Chamber Set. Float
HP16015-Z9L-811 Out of stock
Chamber Set. Float
£52.45 £43.71

  4 Screw Set
Screw Set
HP16016-Z0Y-841 Out of stock
Screw Set
£14.20 £11.83

  5 Screw Set
Screw Set
HP16028-ZK7-S91 Out of stock
Screw Set
£16.45 £13.71

  6 Choke Set
Choke Set
HP16044-Z9L-811 Out of stock
Choke Set
£26.52 £22.10

  7 Carburetor Assy. (Bb77A A)
Carburetor Assy. (Bb77A A)
HP16100-Z9T-811 Out of stock
Carburetor Assy. (Bb77A A)
£148.88 £124.07

  8 Valve. Float
Valve. Float
HP16155-ZM0-013 Out of stock
Valve. Float
£42.60 £35.50

  9 Nozzle. Main
Nozzle. Main
HP16166-Z9P-811 Out of stock
Nozzle. Main
£34.84 £29.03

  11 Packing. Insulator
Packing. Insulator
HP16212-Z9L-000 Out of stock
Packing. Insulator
£11.69 £9.74

  12 Packing. Carburetor
Packing. Carburetor
HP16221-Z9L-000 Out of stock
Packing. Carburetor
£2.60 £2.17

  13 Control Assy. Choke
Control Assy. Choke
HP16600-Z9L-000 Out of stock
Control Assy. Choke
£70.14 £58.45

  14 Thermowax Assy.
Thermowax Assy.
HP16620-Z8D-842 Out of stock
Thermowax Assy.
£44.98 £37.48

  15 Screw. Pan. 5X6
Screw. Pan. 5X6
HP93500-050-060H Out of stock
Screw. Pan. 5X6
£2.28 £1.90

  16 Jet. Main. #62
Jet. Main. #62
HP99101-1240620 Out of stock
Jet. Main. #62
£13.48 £11.23

  16 Jet
Jet
HP99101-1240650 Out of stock
Jet
£12.50 £10.42

  16 Jet. Main. #60
Jet. Main. #60
HP99101-1240600 Out of stock
Jet. Main. #60
£12.10 £10.08


Description

Mountfield SP46 ELITE Parts Diagram

Product Name - SP46 Elite

Model Year - 2019-2023

Model Type - CP1 484 WS

Art.N - 2L0486038/M19

Engine Model - GCVx145 OHV Autochoke
