SP46 - 2014 - 299274643/M13 - Mountfield Rotary Mower Deck Diagram

Description

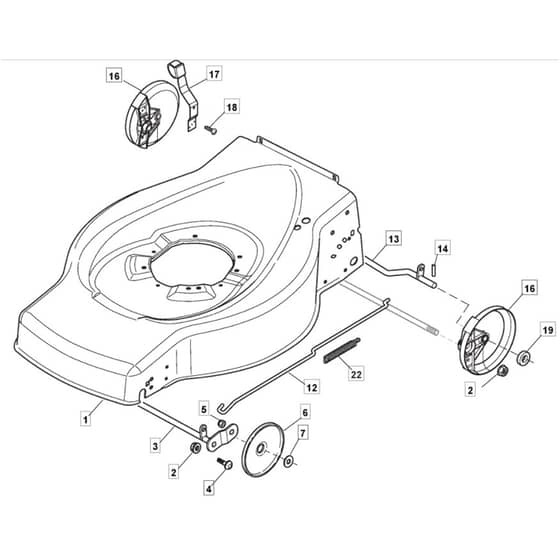

Mountfield SP46 Parts Diagram

Product Name - SP46

Model Year - 2014

Model Type - ESL 464 TR

Art.N - 299274643/M13

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122131750/0 In stock	Nut	£1.87 £1.56
3	MO381000153/0 Out of stock	Front Wheel Axle	£50.93 £42.44
4	MO112760600/1 Out of stock	Screw	£2.15 £1.79
5	MO112155000/0 In stock	Nut	£1.48 £1.23
6	MO322600095/0 Out of stock	Protection. Wheel	£1.66 £1.38
7	MO122671653/0 Out of stock	Washer To 31-8-2006	£1.48 £1.23
7	MO325670011/0 Out of stock	Antifriction Washer From 01-9-2006	£1.66 £1.38
12	MO122033317/0 Out of stock	Adjustment Rod	£17.81 £14.84
13	MO381000159/0 Out of stock	Rear Wheel Axle From 01-9-2006	£23.04 £19.20
13	MO122033393/0 Out of stock	Rear Wheel Axle To 31-8-2006	£23.83 £19.86
14	MO122753001/0 Out of stock	Pin	£1.48 £1.23
16	MO322600106/1 Out of stock	Protection	£6.36 £5.30
17	MO381003303/0 Out of stock	Lever. Height Adjustment	£16.43 £13.69
18	MO112728689/0 Out of stock	Screw	£1.34 £1.12
19	MO122122202/0 Out of stock	Bearing	£2.00 £1.67
22	MO122446186/0 Out of stock	Spring	£5.09 £4.24
