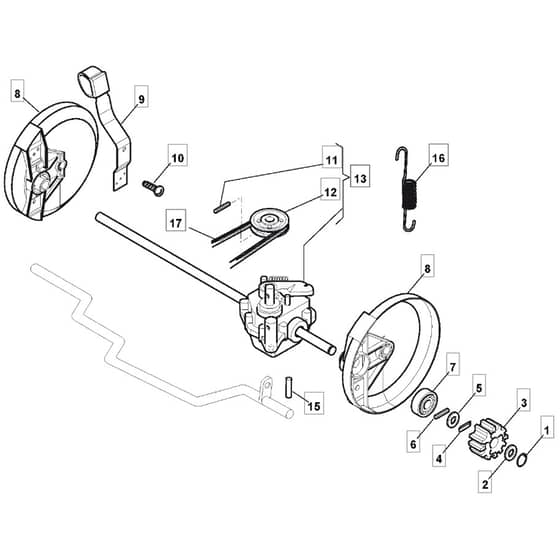

SP454 - 2010-2013 - 299274643/BQ - Mountfield Rotary Mower Transmission Diagram

SP454 - 2010-2013 - 299274643/BQ - Mountfield Rotary Mower Transmission Diagram
SP454 - 2010-2013 - 299274643/BQ - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield SP454 Parts Diagram

Product Name - SP 454

Model Year - 2010-2013

Model Type - ESL 464 TR

Art.N - 299274643/BQ

Ref. Img. Part No. Details
  1 Seeger
Seeger
MO112608520/0 Out of stock
Seeger
£2.68 £2.23

  3 Pinion
Pinion
MO122570125/0 In stock
Pinion
£13.93 £11.61

  4 Key
Key
MO122076645/0 In stock
Key
£1.61 £1.34

  5 Dust Cover Disc
Dust Cover Disc
MO322160520/0 Out of stock
Dust Cover Disc
£1.66 £1.38

  6 Pin
Pin
MO112622620/0 Out of stock
Pin
£1.34 £1.12

  7 Bearing
Bearing
MO122122202/0 Out of stock
Bearing
£2.00 £1.67

  8 Protection. Wheel
Protection. Wheel
MO322600106/1 Out of stock
Protection. Wheel
£6.36 £5.30

  9 Lever. Height Adjustment
Lever. Height Adjustment
MO381003303/0 Out of stock
Lever. Height Adjustment
£16.43 £13.69

  10 Screw
Screw
MO112728689/0 Out of stock
Screw
£1.34 £1.12

  11 Grub Screw
Grub Screw
MO112713801/0 Out of stock
Grub Screw
£2.15 £1.79

  12 Pulley
Pulley
MO122601909/0 In stock
Pulley
£5.35 £4.46

  13 Gear Box From 01-9-2008
Gear Box From 01-9-2008
MO181003093/1 Out of stock
Gear Box From 01-9-2008
£97.75 £81.46

  13 Gear Box F.R. To 31-8-2006
Gear Box F.R. To 31-8-2006
MO181003078/0 Out of stock
Gear Box F.R. To 31-8-2006
£199.40 £166.17

  15 Pin
Pin
MO122753001/0 Out of stock
Pin
£1.48 £1.23

  16 Spring To 31-8-2007
Spring To 31-8-2007
MO122450432/0 In stock
Spring To 31-8-2007
£1.87 £1.56

  16 Spring From 01-9-2007
Spring From 01-9-2007
MO122450438/0 Out of stock
Spring From 01-9-2007
£3.48 £2.90

  17 Trapezoidal Belt X10 Lp.680
Trapezoidal Belt X10 Lp.680
MO135063750/0 In stock
Trapezoidal Belt X10 Lp.680
£10.04 £8.37

  17 Trapezoidal Belt From 01-9-2006 To 31-8-2007
Trapezoidal Belt From 01-9-2006 To 31-8-2007
MO135063170/0 Out of stock
Trapezoidal Belt From 01-9-2006 To 31-8-2007
£8.36 £6.97


Description

Mountfield SP454 Parts Diagram

Product Name - SP 454

Model Year - 2010-2013

Model Type - ESL 464 TR

Art.N - 299274643/BQ
