SP45 - 2014 - 299274648/M14 - Mountfield Rotary Mower WBE0702 Engine Diagram

SP45 - 2014 - 299274648/M14 - Mountfield Rotary Mower WBE0702 Engine Diagram
SP45 - 2014 - 299274648/M14 - Mountfield Rotary Mower WBE0702 Engine Diagram

Description

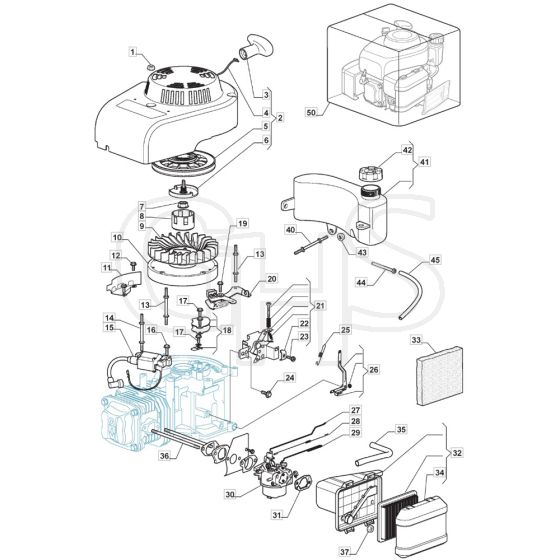

Mountfield SP45 Parts Diagram

Product Name - MOLEMASTER 46PD

Model Year - 2014

Model Type - ESL 464 TR

Art.N - 299274648/M14

Engine Model - RM45

Ref. Img. Part No. Details
  2 Starter Assy
Starter Assy
MO118550276/1 In stock
Starter Assy
£49.55 £41.29

  3 Starter Handle
Starter Handle
MO118550274/0 Out of stock
Starter Handle
£14.72 £12.27

  4 Starting Rope
Starting Rope
MO118550779/0 Out of stock
Starting Rope
£6.83 £5.69

  5 Starter Pulley
Starter Pulley
MO118550778/0 Out of stock
Starter Pulley
£25.57 £21.31

  6 Starter Pawl Set
Starter Pawl Set
MO118550275/1 In stock
Starter Pawl Set
£11.65 £9.71

  7 Nut
Nut
MO118550336/0 Out of stock
Nut
£5.76 £4.80

  8 Starter Cup
Starter Cup
MO118550335/0 Out of stock
Starter Cup
£21.42 £17.85

  9 Flywheel Fan
Flywheel Fan
MO118550254/0 Out of stock
Flywheel Fan
£19.88 £16.57

  10 Flywheel Ass.Y
Flywheel Ass.Y
MO118550253/0 Out of stock
Flywheel Ass.Y
£91.06 £75.88

  11 Guard
Guard
MO118550774/0 Out of stock
Guard
£7.16 £5.97

  13 Stud Bolt
Stud Bolt
MO118550302/0 Out of stock
Stud Bolt
£7.51 £6.26

  14 Stud Bolt
Stud Bolt
MO118550301/0 Out of stock
Stud Bolt
£6.29 £5.24

  15 Electronic Coil
Electronic Coil
MO118550255/1 In stock
Electronic Coil
£50.88 £42.40

  17 Screw
Screw
MO112790500/0 Out of stock
Screw
£1.87 £1.56

  18 Gasket Assy
Gasket Assy
MO118550378/0 Out of stock
Gasket Assy
£21.96 £18.30

  19 Screw
Screw
MO112791500/0 Out of stock
Screw
£1.48 £1.23

  20 Flywheel Brake Assy
Flywheel Brake Assy
MO118550376/0 Out of stock
Flywheel Brake Assy
£37.49 £31.24

  21 Remote Control Assy
Remote Control Assy
MO118550259/0 Out of stock
Remote Control Assy
£28.12 £23.43

  23 Screw
Screw
MO118550338/0 Out of stock
Screw
£6.70 £5.58

  24 Screw
Screw
MO112791213/1 Out of stock
Screw
£1.48 £1.23

  25 Spring
Spring
MO118550260/0 In stock
Spring
£3.74 £3.12

  26 Arm Governor Assy
Arm Governor Assy
MO118550266/0 Out of stock
Arm Governor Assy
£14.33 £11.94

  27 Governor Link
Governor Link
MO118550397/0 Out of stock
Governor Link
£2.81 £2.34

  28 Spring
Spring
MO118550263/0 Out of stock
Spring
£2.68 £2.23

  29 Choke Control Rod
Choke Control Rod
MO118550264/0 Out of stock
Choke Control Rod
£3.35 £2.79

  30 Carburetor
Carburetor
MO118550390/0 In stock
Carburetor
£72.98 £60.82

  31 Air Filter Gasket
Air Filter Gasket
MO118550738/0 Out of stock
Air Filter Gasket
£6.02 £5.02

  32 Air Cleaner Assy
Air Cleaner Assy
MO118550737/0 In stock
Air Cleaner Assy
£22.50 £18.75

  33 Air Filter
Air Filter
MO118550452/0 In stock
Air Filter
£8.17 £6.81

  34 Air Cleaner Cover
Air Cleaner Cover
MO118550739/0 In stock
Air Cleaner Cover
£7.16 £5.97

  35 Breather Fuel Pipe
Breather Fuel Pipe
MO118550377/0 Out of stock
Breather Fuel Pipe
£4.28 £3.57

  36 Stud Bolt
Stud Bolt
MO118550298/0 Out of stock
Stud Bolt
£6.43 £5.36

  40 Stud Bolt
Stud Bolt
MO118550315/0 Out of stock
Stud Bolt
£7.37 £6.14

  41 Fuel Tank
Fuel Tank
MO118550316/1 Out of stock
Fuel Tank
£40.18 £33.48

  42 Fuel Cap
Fuel Cap
MO118550943/1 In stock
Fuel Cap
£14.72 £12.27

  43 Nut
Nut
MO112292102/0 In stock
Nut
£1.61 £1.34

  44 Fuel Filter
Fuel Filter
MO118550314/0 In stock
Fuel Filter
£4.15 £3.46

  45 Fuel Pipe
Fuel Pipe
MO118550340/0 In stock
Fuel Pipe
£7.50 £6.25

  50 Engine Assembled
Engine Assembled
MO118550407/1 Out of stock
Engine Assembled
£262.39 £218.66


Description

Mountfield SP45 Parts Diagram

Product Name - MOLEMASTER 46PD

Model Year - 2014

Model Type - ESL 464 TR

Art.N - 299274648/M14

Engine Model - RM45
