SP425 - 2015-2019 - 295432038/M15 - Mountfield Rotary Mower Flywheel GCV160A0 S4 GB SD Diagram

Description

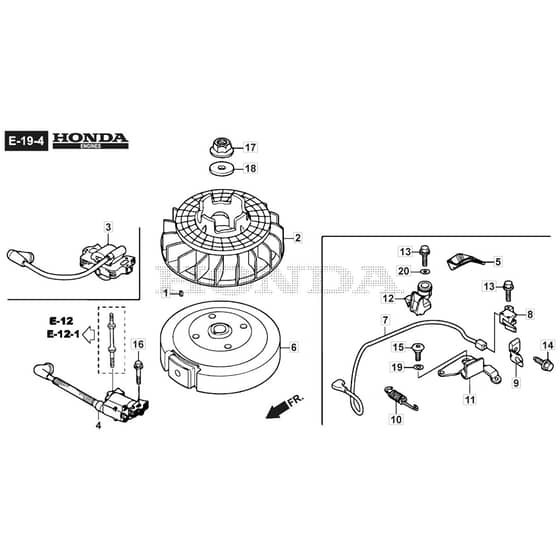

Mountfield SP425 Parts Diagram

Product Name - SP 425

Model Year - 2015-2019

Model Type - CR 434 S

Art.N - 295432038/M15

Engine Model - Honda GCV 160 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP13331-Z8B-900 Out of stock	Key. Special Woodruff. 25X18	£2.28 £1.90
2	HP19511-Z8B-900 Out of stock	Fan. Cooling	£46.78 £38.98
3	HP30500-Z8B-903 Out of stock	Coil Assy. Ignition (Phelon)	£89.77 £74.81
5	HP30549-Z8B-900 Out of stock	Clamper. Cord	£4.73 £3.94
6	HP31110-Z0Y-003 Out of stock	Flywheel Comp. (Phelon)	£121.20 £101.00
7	HP32195-Z8B-901 Out of stock	Cord. Stop Switch	£7.63 £6.36
8	HP35120-Z8B-902 Out of stock	Switch Assy. Engine Stop	£18.38 £15.32
9	HP43416-Z8B-900 Out of stock	Bracket. Brake Cable	£30.79 £25.66
10	HP75113-Z8B-900 Out of stock	Spring. Brake Lever	£2.28 £1.90
11	HP75120-Z8B-901 Out of stock	Arm Comp. Brake	£23.11 £19.26
12	HP75573-Z8B-901 Out of stock	Spring. Tensioner	£3.31 £2.76
13	HP90001-Z8B-900 Out of stock	Bolt. Special. 5X16	£4.43 £3.69
14	HP90007-Z8B-900 Out of stock	Bolt. Flange. 6X14	£3.08 £2.57
15	HP90009-Z8B-900 Out of stock	Bolt. Special	£1.15 £0.96
16	HP90018-ZE1-000 Out of stock	Bolt. Flange. 6X23 (Ct200)	£3.52 £2.93
17	HP90201-Z0T-800 Out of stock	Nut. Special. 14mm	£7.60 £6.33
18	HP90401-Z8B-900 Out of stock	Washer. 14X45	£13.84 £11.53
19	HP90402-Z8B-900 Out of stock	Washer. Special	£2.08 £1.73
20	HP94103-05800 Out of stock	Plain Washer 5mm	£1.09 £0.91
