SP42 - 2021-2022 - 2L0432048/MTL - Mountfield Rotary Mower Height Adjusting Diagram

Name: SP42 - 2021-2022 - 2L0432048/MTL - Mountfield Rotary Mower Height Adjusting Diagram
SKU: sp42_2l0432048_mtl_height_adjusting-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP42 - 2021-2022 - 2L0432048/MTL - Mountfield Rotary Mower Height Adjusting Diagram

Description

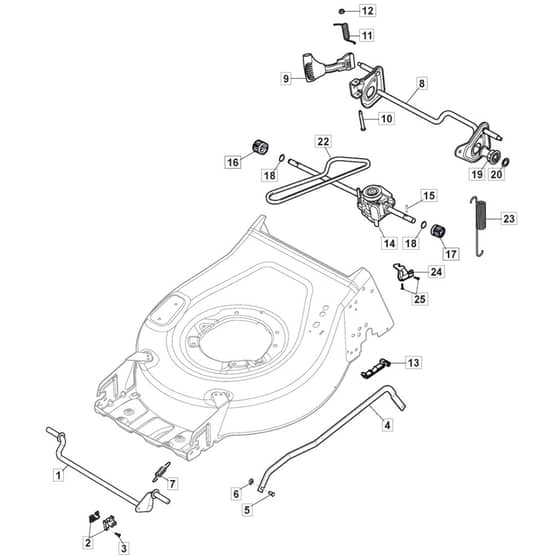

Mountfield SP42 Parts Diagram

Product Name - SP 42

Model Year - 2021-2022

Model Type - CP1 434 S

Art.N - 2L0432048/MTL

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302941/1 Out of stock	Axle. Front Wheels	£28.44 £23.70
2	MO322785305/1 In stock	Support	£2.58 £2.15
3	MO112728697/0 In stock	Screw	£1.49 £1.24
4	MO322869731/1 Out of stock	Rod. Height Adjustment	£17.47 £14.56
5	MO122519823/0 In stock	Pin	£2.17 £1.81
6	MO112000930/0 In stock	Benzing Ring	£1.49 £1.24
7	MO122446193/0 Out of stock	Spring	£4.60 £3.83
8	MO381302851/1 Out of stock	Rear Wheel Axle	£43.33 £36.11
9	MO381003356/1 Out of stock	Wheels Rear Adj. Lever	£5.54 £4.62
10	MO122534131/0 Out of stock	Pin	£1.49 £1.24
11	MO122446192/0 Out of stock	Spring	£2.04 £1.70
12	MO112154510/0 In stock	Nut	£1.49 £1.24
13	MO322785500/0 Out of stock	Support	£1.75 £1.46
14	MO181003134/0 Out of stock	Gear Box	£94.81 £79.01
15	MO122753000/0 In stock	Pin	£1.49 £1.24
16	MO322570138/0 In stock	Right Pinion	£7.12 £5.93
17	MO122570120/1 In stock	Left Pinion	£7.12 £5.93
18	MO112608600/0 Out of stock	Seeger	£1.49 £1.24
19	MO322042066/0 Out of stock	Bushing	£1.75 £1.46
20	MO112521371/0 Out of stock	Washer	£1.49 £1.24
22	MO135063711/0 Out of stock	Belt	£6.94 £5.78
23	MO122430254/0 Out of stock	Spring	£3.92 £3.27
24	MO322778473/1 Out of stock	Bracket	£2.04 £1.70
25	MO112728904/0 Out of stock	Self-Tapping Screw K60 X 22 Wn1451	£1.49 £1.24
