SP41 - 2020 - 297412048/AMZ - Mountfield Rotary Mower Engine Diagram

Description

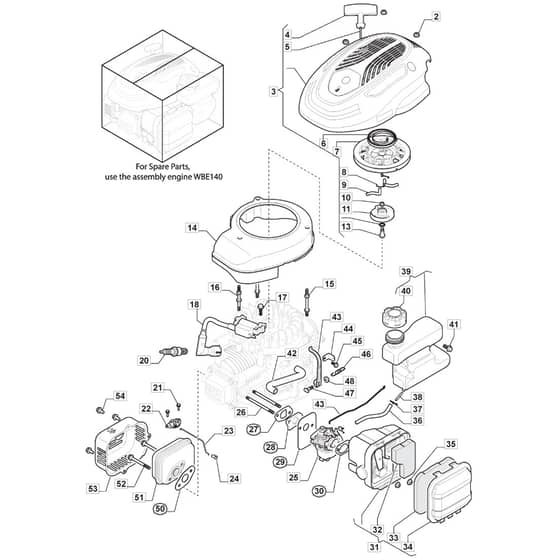

Mountfield SP41 Parts Diagram

Product Name - SP 41

Model Year - 2020

Model Type - EP 414 TR

Art.N - 297412048/AMZ

Engine Model - ST120 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118551467/0 Out of stock	Starter Assy	£68.96 £57.47
4	MO118551619/0 Out of stock	Starter Handle	£8.57 £7.14
5	MO118550779/0 Out of stock	Starting Rope	£6.83 £5.69
6	MO118551621/0 Out of stock	Starter Spring	£9.64 £8.03
7	MO118551620/0 Out of stock	Starter Pulley	£14.72 £12.27
8	MO118551626/0 Out of stock	Spring	£2.28 £1.90
9	MO118551622/0 Out of stock	Ratchet. Starter	£2.81 £2.34
10	MO118551625/0 Out of stock	Spring	£2.94 £2.45
11	MO118551623/0 Out of stock	Cover	£7.50 £6.25
13	MO118551624/0 Out of stock	Stud	£4.02 £3.35
14	MO118550908/0 Out of stock	Air Guide	£36.16 £30.13
17	MO112791500/0 Out of stock	Screw	£1.48 £1.23
18	MO118551475/0 In stock	Elettronic Coil	£49.27 £41.06
20	3381 In stock	Spark Plug	£3.84 £3.20
22	MO118551456/0 In stock	Choke Control	£22.50 £18.75
23	MO118551459/0 Out of stock	Control Rod	£7.97 £6.64
24	MO118551352/0 Out of stock	Retainer	£3.48 £2.90
25	MO118551489/1 Out of stock	Carburettor	£66.95 £55.79
26	MO118550930/0 Out of stock	Stud Bolt	£5.50 £4.58
27	MO118550929/0 In stock	Gasket	£1.48 £1.23
28	MO118550928/0 In stock	Insulator. Carburettor	£2.81 £2.34
29	MO118550927/0 In stock	Gasket	£4.55 £3.79
30	MO118550924/0 In stock	Gasket	£1.61 £1.34
31	MO118551461/0 Out of stock	Air Cleaner Assy	£29.46 £24.55
32	MO118550946/0 In stock	Air Filter	£3.08 £2.57
33	MO118550945/0 In stock	Air Filter	£2.94 £2.45
34	MO118550944/0 In stock	Air Cleaner Cover	£8.51 £7.09
35	MO112292102/0 In stock	Nut	£1.61 £1.34
36	MO118551481/0 In stock	Fuel Pipe	£6.56 £5.47
37	MO118550918/0 Out of stock	Pipe Clip	£1.48 £1.23
38	MO118550314/0 In stock	Fuel Filter	£4.15 £3.46
39	MO118551454/0 In stock	Tank	£38.83 £32.36
40	MO118550943/1 In stock	Fuel Cap	£14.72 £12.27
41	MO112792099/0 In stock	Screw	£1.34 £1.12
42	MO118550920/0 Out of stock	Breather Fuel Pipe	£4.02 £3.35
43	MO118550933/0 Out of stock	Arm Governor	£5.89 £4.91
45	MO112789000/0 Out of stock	Screw	£1.48 £1.23
46	MO118550932/0 In stock	Spring	£1.48 £1.23
49	MO118550925/0 Out of stock	Governor Link	£1.48 £1.23
50	MO118550898/0 Out of stock	Gasket. Muffler	£2.28 £1.90
51	MO118551464/0 Out of stock	Muffler	£32.14 £26.78
52	MO112792425/0 Out of stock	Screw	£1.61 £1.34
53	MO118550900/0 Out of stock	Muffler Guard	£20.09 £16.74
