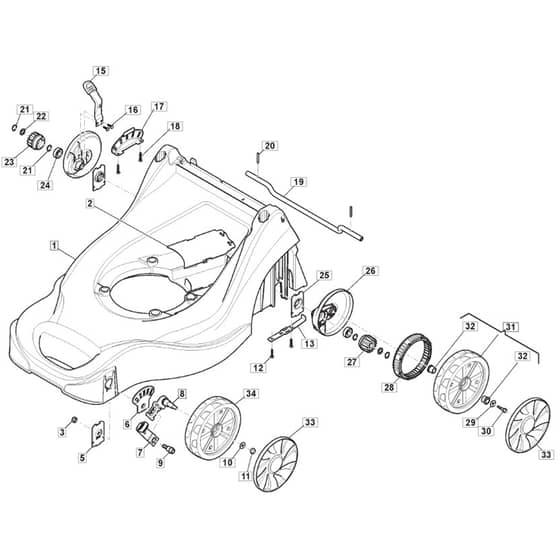

SP164 - 2019-2023 - 297412048/MC - Mountfield Rotary Mower Deck Diagram

Name: SP164 - 2019-2023 - 297412048/MC - Mountfield Rotary Mower Deck Diagram
SKU: sp164_297412048_mc_deck-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP164 - 2019-2023 - 297412048/MC - Mountfield Rotary Mower Deck Diagram

Description

Mountfield SP164 Parts Diagram

Product Name - SP 164

Model Year - 2019-2023

Model Type - EP 414 TR

Art.N - 297412048/MC

Engine Model - ST 120 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322066750/0 Out of stock	Red Deck	£69.83 £58.19
1	MO322066752/0 Out of stock	Red Deck Dark Red	£69.20 £57.67
2	MO322060245/0 Out of stock	Belt Protection	£2.92 £2.43
3	MO112154210/0 In stock	Nut	£1.54 £1.28
5	MO322785361/0 Out of stock	Support. Wheel	£2.03 £1.69
6	MO322735599/0 Out of stock	Sector. Height Adjustment	£3.68 £3.07
7	MO381003352/0 Out of stock	Lever. Height Adjustment	£6.60 £5.50
8	MO381005163/0 Out of stock	Wheel Support	£6.35 £5.29
9	MO122519811/0 Out of stock	Pin	£1.39 £1.16
10	MO112521350/0 In stock	Washer	£1.39 £1.16
11	MO112155000/0 In stock	Nut	£1.39 £1.16
13	MO322608563/0 Out of stock	Deck Rear Stiffening	£2.42 £2.02
15	MO381003353/0 Out of stock	Lever. Height Adjustment	£7.24 £6.03
16	MO112728689/0 Out of stock	Screw	£1.28 £1.07
17	MO322735601/0 Out of stock	Sector. Height Adjustment	£2.66 £2.22
18	MO112728690/0 Out of stock	Screw	£1.39 £1.16
19	MO122033417/0 Out of stock	Rear Wheel Axle	£14.54 £12.12
20	MO122753001/0 Out of stock	Pin	£1.39 £1.16
21	MO112608600/0 In stock	Seeger	£1.39 £1.16
22	MO112521370/0 Out of stock	Washer	£1.39 £1.16
23	MO322570135/0 In stock	Right Pinion	£3.43 £2.86
24	MO119216035/0 In stock	Bearing	£3.17 £2.64
25	MO322785379/0 Out of stock	Support	£2.03 £1.69
26	MO322600203/0 Out of stock	Protection. Wheel	£4.84 £4.03
27	MO322570136/0 In stock	Left Pinion	£3.43 £2.86
28	MO322120118/0 Out of stock	Traction Crown	£9.91 £8.26
29	MO112523040/0 In stock	Washer	£1.39 £1.16
30	MO112735592/0 Out of stock	Screw	£1.78 £1.48
31	MO381007475/0 In stock	Wheel	£5.83 £4.86
32	MO322034516/0 Out of stock	Bushing	£1.39 £1.16
33	MO322110642/0 Out of stock	Hub Cap Grey	£2.03 £1.69
34	MO322686100/0 In stock	Delta Wheel D.175	£5.74 £4.78
