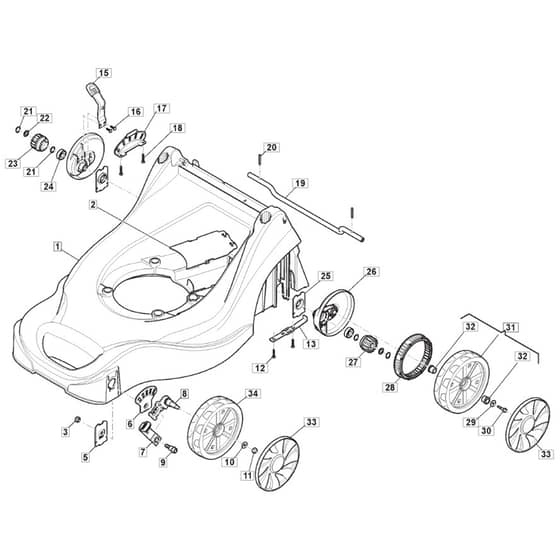

SP164 - 2017-2019 - 297412048/WX - Mountfield Rotary Mower Deck Diagram

Name: SP164 - 2017-2019 - 297412048/WX - Mountfield Rotary Mower Deck Diagram
SKU: sp164_297412048_wx_deck-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP164 - 2017-2019 - 297412048/WX - Mountfield Rotary Mower Deck Diagram

Description

Mountfield SP164 Parts Diagram

Product Name - SP 164

Model Year - 2017-2019

Model Type - EP 414 TR

Art.N - 297412048/WX

Engine Model - ST 120 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322066752/0 Out of stock	Red Deck Dark Red	£73.81 £61.51
2	MO322060245/0 Out of stock	Belt Protection	£3.12 £2.60
3	MO112154210/0 In stock	Nut	£1.63 £1.36
5	MO322785361/0 Out of stock	Support. Wheel	£2.17 £1.81
6	MO322735599/0 Out of stock	Sector. Height Adjustment	£3.92 £3.27
7	MO381003352/0 Out of stock	Lever. Height Adjustment	£7.03 £5.86
8	MO381005163/0 Out of stock	Wheel Support	£6.77 £5.64
9	MO122519811/0 Out of stock	Pin	£1.49 £1.24
10	MO112521350/0 In stock	Washer	£1.49 £1.24
11	MO112155000/0 In stock	Nut	£1.49 £1.24
13	MO322608563/0 Out of stock	Deck Rear Stiffening	£2.58 £2.15
15	MO381003353/0 Out of stock	Lever. Height Adjustment	£7.72 £6.43
16	MO112728689/0 Out of stock	Screw	£1.36 £1.13
17	MO322735601/0 Out of stock	Sector. Height Adjustment	£2.84 £2.37
18	MO112728690/0 Out of stock	Screw	£1.49 £1.24
19	MO122033417/0 Out of stock	Rear Wheel Axle	£15.50 £12.92
20	MO122753001/0 Out of stock	Pin	£1.49 £1.24
21	MO112608600/0 Out of stock	Seeger	£1.49 £1.24
22	MO112521370/0 Out of stock	Washer	£1.49 £1.24
23	MO322570135/0 In stock	Right Pinion	£3.65 £3.04
24	MO119216035/0 In stock	Bearing	£3.38 £2.82
25	MO322785379/0 Out of stock	Support	£2.17 £1.81
26	MO322600203/0 Out of stock	Protection. Wheel	£5.15 £4.29
27	MO322570136/0 In stock	Left Pinion	£3.65 £3.04
28	MO322120118/0 Out of stock	Traction Crown	£10.56 £8.80
29	MO112523040/0 In stock	Washer	£1.49 £1.24
30	MO112735592/0 Out of stock	Screw	£1.90 £1.58
31	MO381007475/0 In stock	Wheel	£6.23 £5.19
32	MO322034516/0 Out of stock	Bushing	£1.49 £1.24
33	MO322110642/0 Out of stock	Hub Cap Grey	£2.17 £1.81
34	MO322686100/0 Out of stock	Delta Wheel D.175	£6.10 £5.08
