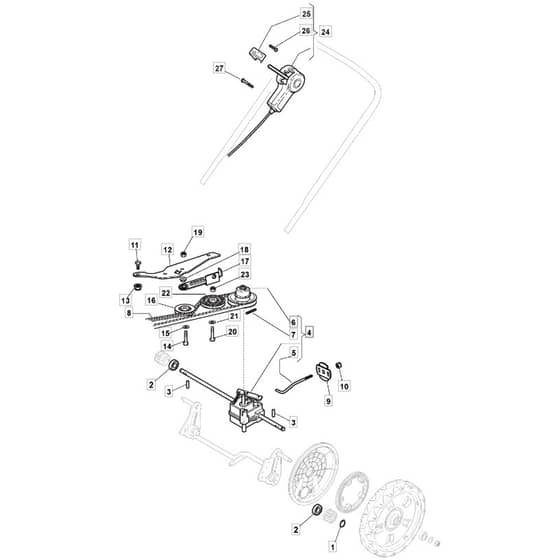

S510 PD BW 4S - 2021-2022 - 299533243/MTF - Mountfield Rotary Mower Transmission Diagram

S510 PD BW 4S - 2021-2022 - 299533243/MTF - Mountfield Rotary Mower Transmission Diagram
S510 PD BW 4S - 2021-2022 - 299533243/MTF - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield S510 PD BW 4S Parts Diagram

Product Name - S 510 PD BW 4S

Model Year - 2021-2022

Model Type - NTL 534 W TR 4S

Art.N - 299533243/MTF

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Seeger MO112608600/0
Seeger
 In stock
£1.49 £1.24

  2 Bearing MO119216035/0
Bearing
 In stock
£3.38 £2.82

  3 Pin MO122753000/0
Pin
 In stock
£1.49 £1.24

  4 Gear Box Only for Models with MO181003102/1
Gear Box Only for Models with "Flat" handle
 Out of stock
£148.99 £124.16

  4 Gear Box MO181003096/3
Gear Box
 Out of stock
£142.21 £118.51

  5 Adjustment Rod MO122033285/0
Adjustment Rod
 Out of stock
£6.64 £5.53

  6 Pulley From 01-9-2013 MO122601932/0
Pulley From 01-9-2013
 Out of stock
£55.26 £46.05

  6 Pulley To 31-8-2013 MO122601925/0
Pulley To 31-8-2013
 Out of stock
£63.65 £53.04

  7 Elastic Pin MO112645700/0
Elastic Pin
 Out of stock
£1.49 £1.24

  8 Belt MO135064010/0
Belt
 In stock
£13.67 £11.39

  9 Washer MO322675113/0
Washer
 Out of stock
£1.90 £1.58

  11 Screw MO112791011/0
Screw
 Out of stock
£1.36 £1.13

  12 Support MO322806625/2
Support
 Out of stock
£5.28 £4.40

  13 Nut MO112292102/0
Nut
 In stock
£1.63 £1.36

  14 Screw MO112689500/0
Screw
 Out of stock
£1.49 £1.24

  16 Pulley MO122601915/0
Pulley
 In stock
£20.58 £17.15

  17 Pulley Support MO322806623/0
Pulley Support
 Out of stock
£4.07 £3.39

  18 Washer MO122671656/0
Washer
 Out of stock
£7.03 £5.86

  20 Screw MO112674700/0
Screw
 Out of stock
£1.49 £1.24

  21 Washer MO112523050/0
Washer
 In stock
£1.49 £1.24

  22 Pulley MO122601914/0
Pulley
 In stock
£20.72 £17.27

  23 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  24 Speed Control Ass.Y MO381007110/0
Speed Control Ass.Y
 Out of stock
£47.40 £39.50

  25 Knob MO322399809/0
Knob
 Out of stock
£1.49 £1.24

  26 Screw MO112728300/0
Screw
 Out of stock
£1.49 £1.24

  27 Self-Tap Screw Pt Torx Wn1451 K50 X 40 MO112728702/0
Self-Tap Screw Pt Torx Wn1451 K50 X 40
 Out of stock
£1.49 £1.24


Description

Mountfield S510 PD BW 4S Parts Diagram

Product Name - S 510 PD BW 4S

Model Year - 2021-2022

Model Type - NTL 534 W TR 4S

Art.N - 299533243/MTF
