S510 PD BW - 2010 - 299536023/M10 - Mountfield Rotary Mower Transmission Diagram

Description

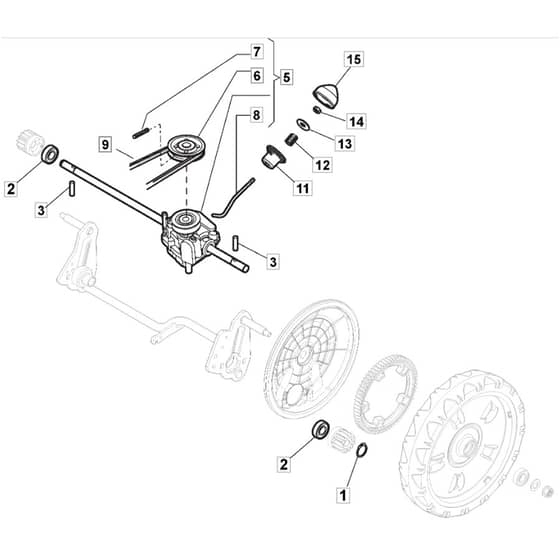

Mountfield S510 PD BW Parts Diagram

Product Name - HW S510 PD

Model Year - 2010

Model Type - NT 534 W TR

Art.N - 299536023/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.39 £1.16
2	MO119216035/0 In stock	Bearing	£3.17 £2.64
3	MO122753000/0 In stock	Pin	£1.39 £1.16
5	MO181003092/0 Out of stock	Gear Box To 31-8-2012	£63.96 £53.30
5	MO181003076/1 Out of stock	Gear Box From 01-9-2012	£109.20 £91.00
6	MO122601909/0 In stock	Pulley	£5.09 £4.24
7	MO112645700/0 Out of stock	Elastic Pin	£1.39 £1.16
8	MO122033283/0 In stock	Adjustment Rod	£4.20 £3.50
9	MO1111-9124-01 Out of stock	Drive Belt Stiga Packed into 135063902.1	£11.94 £9.95
9	MO135063902/1 In stock	Belt	£8.96 £7.47
11	MO122041957/1 Out of stock	Bushing	£1.39 £1.16
12	MO122450063/0 Out of stock	Spring	£1.39 £1.16
13	MO322680009/0 Out of stock	Washer	£1.66 £1.38
14	MO112154510/0 In stock	Nut	£1.39 £1.16
15	MO122110230/0 In stock	Hub Cover	£1.39 £1.16
