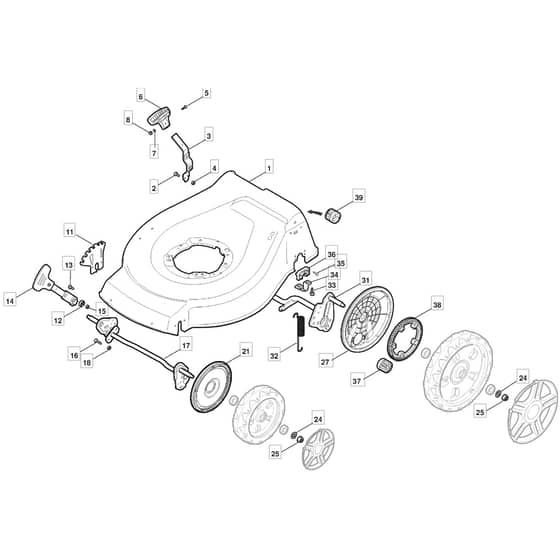

S510 PD BW - 2010 - 299536023/M10 - Mountfield Rotary Mower Deck Diagram

Description

Mountfield S510 PD BW Parts Diagram

Product Name - HW S510 PD

Model Year - 2010

Model Type - NT 534 W TR

Art.N - 299536023/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381003909/0 Out of stock	Red Deck	£197.33 £164.44
5	MO112788512/0 Out of stock	Screw	£1.48 £1.23
6	MO322394503/0 Out of stock	Knob	£1.79 £1.49
7	MO112521310/0 Out of stock	Washer	£1.34 £1.12
8	MO112150000/0 Out of stock	Nut	£1.34 £1.12
11	MO322735593/0 Out of stock	Sector. Height Adjustment	£3.70 £3.08
12	MO122171002/0 Out of stock	Spacer	£1.48 £1.23
13	MO112789000/0 Out of stock	Screw	£1.48 £1.23
14	MO381003351/0 Out of stock	Wheels Adjusting Lever	£15.79 £13.16
15	MO112154330/0 Out of stock	Nut	£1.48 £1.23
16	MO112727803/0 Out of stock	Screw	£1.48 £1.23
17	MO381002885/1 Out of stock	Front Wheel Axle	£35.65 £29.71
18	MO112154510/0 In stock	Nut	£1.48 £1.23
21	MO322600145/0 Out of stock	Protection. Wheel	£1.66 £1.38
24	MO112521350/0 In stock	Washer	£1.48 £1.23
25	MO112155000/0 In stock	Nut	£1.48 £1.23

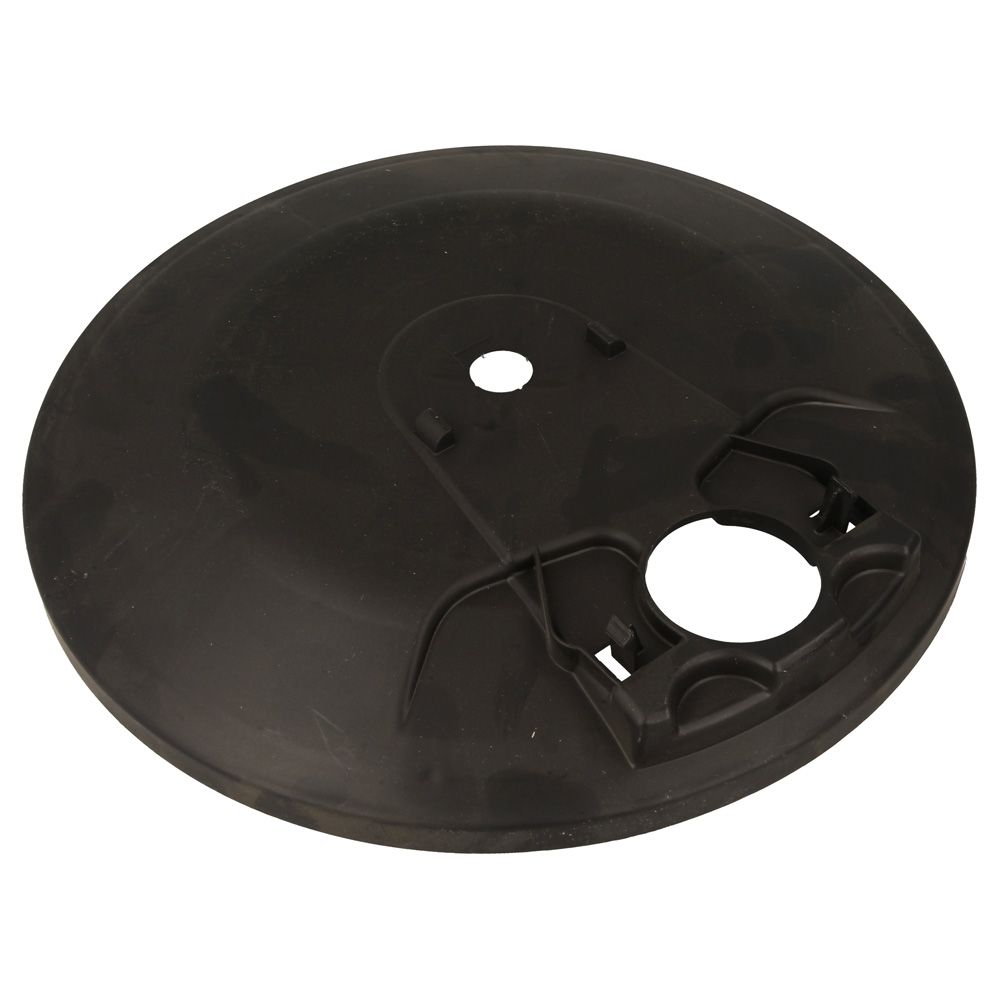

27	MO322600194/0 Out of stock	Protection. Wheel	£3.82 £3.18
31	MO381002895/1 Out of stock	Rear Wheel Axle	£63.66 £53.05
32	MO122450460/0 Out of stock	Spring	£4.42 £3.68
34	MO322545152/0 In stock	Plate	£1.66 £1.38
35	MO112728697/0 In stock	Screw	£1.48 £1.23
36	MO322785304/1 Out of stock	Support	£2.29 £1.91
37	MO122570134/0 In stock	Left Pinion	£7.16 £5.97
38	MO381007472/2 In stock	Wheels Crown	£36.92 £30.77
39	MO122570133/0 In stock	Right Pinion Z12 Gear	£7.16 £5.97
