S501R PD - 2019-2021 - 294519043/M19 - Mountfield Rotary Mower Deck Diagram

Name: S501R PD - 2019-2021 - 294519043/M19 - Mountfield Rotary Mower Deck Diagram
SKU: s501r_pd_294519043_m19_deck-group
Price: 1.01 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

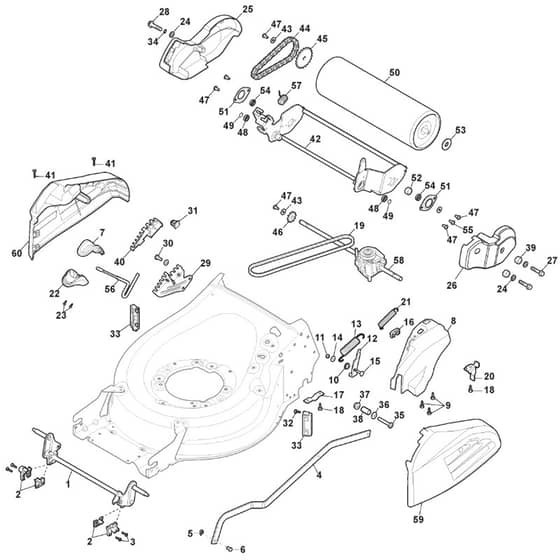

S501R PD - 2019-2021 - 294519043/M19 - Mountfield Rotary Mower Deck Diagram

Description

Mountfield S501R PD Parts Diagram

Product Name - S501R PD

Model Year - 2019-2021

Model Type - MP2 504 S-R

Art.N - 294519043/M19

Engine Model - ST170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302885/0	Front Wheel Axle To S.N 20EA2WBH012057	Out of stock	£39.28 £32.73
1	MO381302885/1	Front Wheel Axle From S.N 20EA2WBH012058	Out of stock	£29.80 £24.83
2	MO322785305/1	Support	In stock	£2.58 £2.15
3	MO112728697/0	Screw	In stock	£1.49 £1.24
4	MO322869719/0	Adjustment Rod To S.N 20EA2WBH012041	Out of stock	£47.40 £39.50
4	MO322869719/1	Adjustment Rod From S.N 20EA2WBH012042	Out of stock	£36.56 £30.47
5	MO112436050/0	Plate	In stock	£1.75 £1.46
6	MO122519823/0	Pin	In stock	£2.17 £1.81
7	MO322394541/0	Cap	Out of stock	£3.38 £2.82
8	MO322055329/0	Cover	Out of stock	£12.46 £10.38
9	MO112728904/0	Screw	Out of stock	£1.49 £1.24
10	MO122517873/0	Pin	Out of stock	£2.84 £2.37
11	MO112154510/0	Nut	In stock	£1.49 £1.24
12	MO322778475/0	Bracket	Out of stock	£2.70 £2.25
13	MO122450480/0	Spring	Out of stock	£2.30 £1.92
15	MO112815270/0	Screw	Out of stock	£1.49 £1.24
16	MO322038407/0	Brass	Out of stock	£1.49 £1.24

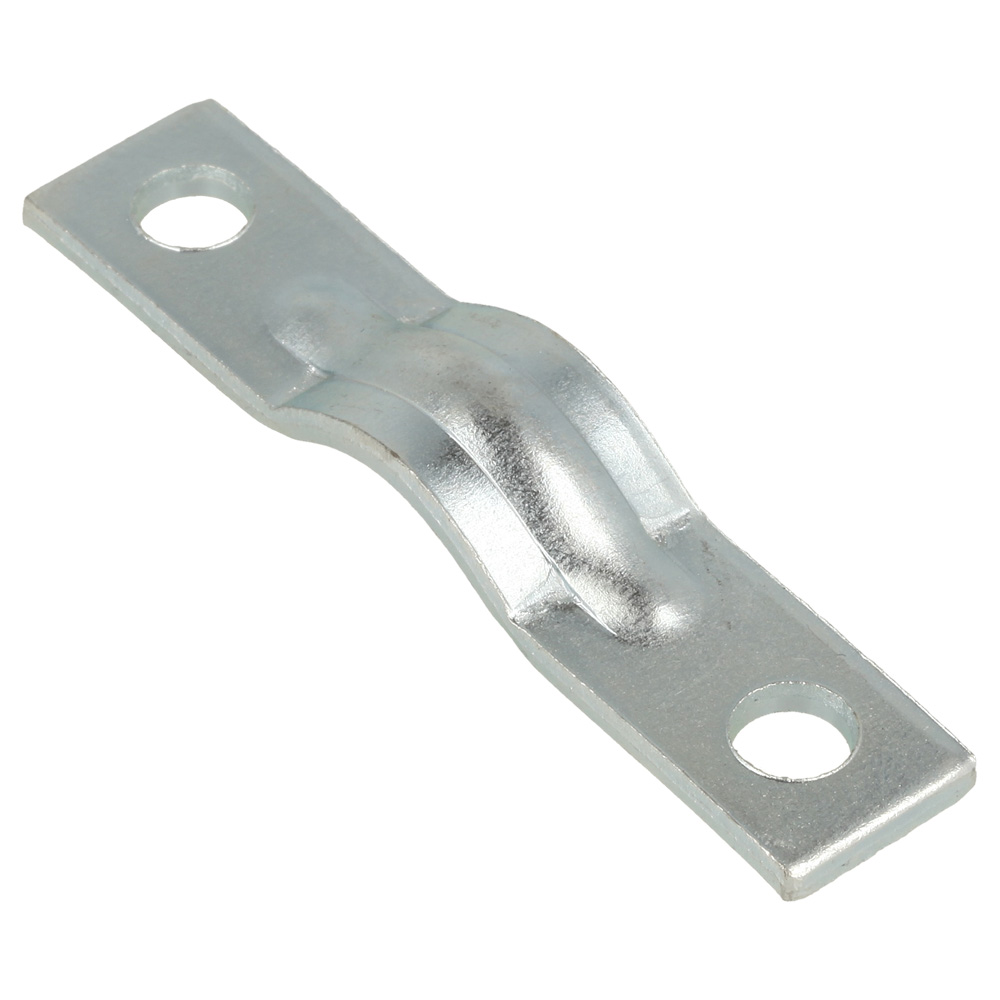

17	MO322545147/0	Plate	Out of stock	£1.90 £1.58
19	MO1111-9252-01	Belt Stiga Packed into 135063802.0	Out of stock	£8.90 £7.42
19	MO135063802/0	Belt	Out of stock	£8.90 £7.42
20	MO322778489/0	Plate	Out of stock	£2.30 £1.92
21	MO122450478/0	Spring	Out of stock	£8.53 £7.11
22	MO322394537/0	Cap	Out of stock	£3.92 £3.27
25	MO322060272/0	Right Carter To 31-8-2016	Out of stock	£8.87 £7.39
25	MO322060272/2	Right Carter	Out of stock	£8.87 £7.39
26	MO322060273/1	Left Carter	Out of stock	£8.87 £7.39
27	MO112735592/0	Screw	Out of stock	£1.90 £1.58
28	MO112735594/0	Screw	Out of stock	£1.49 £1.24
29	MO322735605/0	Sector. Height Adjustment	Out of stock	£8.27 £6.89
30	MO9943-0516-16	Screw	In stock	£1.21 £1.01

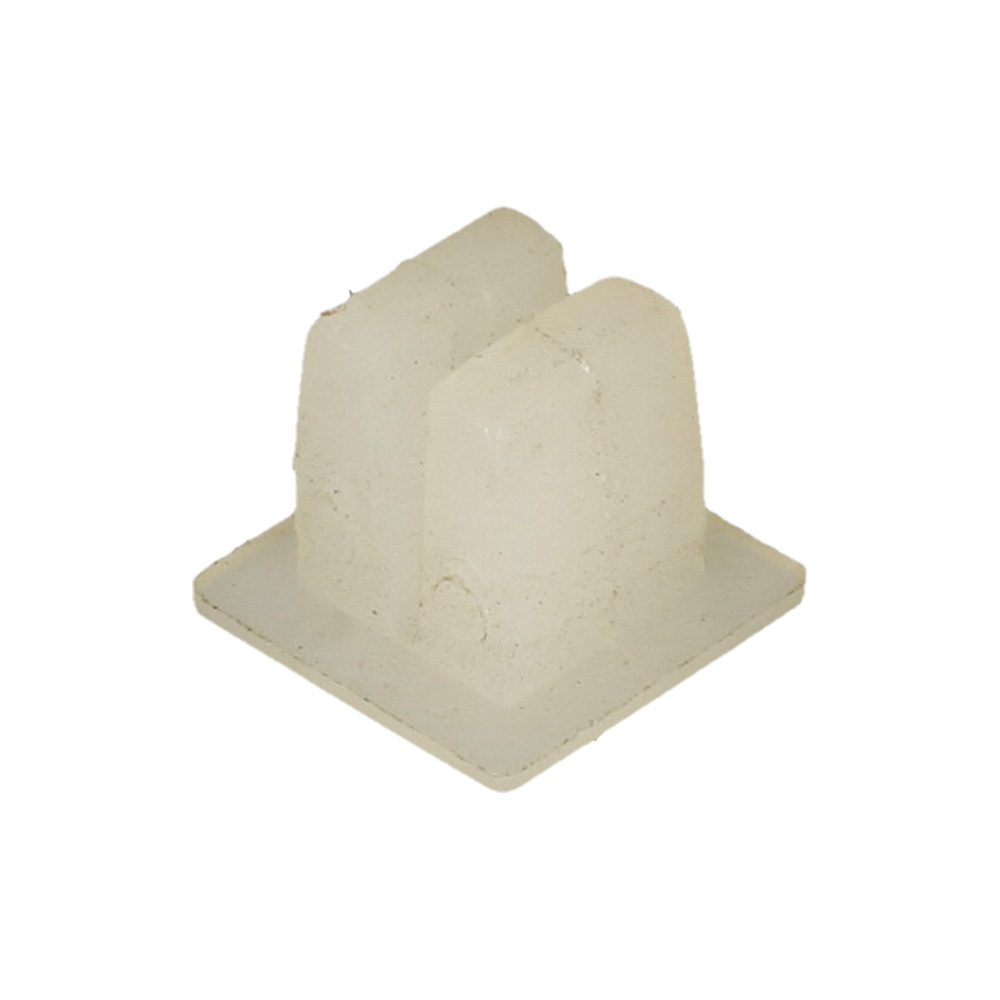

31	MO118737864/0	Brass	Out of stock	£1.36 £1.13
32	MO112728706/0	Screw	In stock	£1.49 £1.24
33	MO322546053/0	Plate	Out of stock	£2.58 £2.15
34	MO119035002/0	Or Ring	Out of stock	£2.04 £1.70
35	MO112691200/0	Screw	Out of stock	£1.63 £1.36
36	MO122671651/0	Washer	In stock	£1.90 £1.58
37	MO112155015/0	Nut	Out of stock	£1.63 £1.36
38	MO122167840/0	Spacer	Out of stock	£1.49 £1.24
40	MO322570216/0	Plate	Out of stock	£5.28 £4.40
41	MO112728696/0	Screw	Out of stock	£1.49 £1.24
42	MO381302907/0	Rear Wheel Axle	Out of stock	£89.39 £74.49
43	MO112523040/0	Washer	In stock	£1.49 £1.24
44	MO1111-3562-01	Chain	In stock	£19.31 £16.09
45	MO1111-3424-01	Ring Gear	In stock	£17.62 £14.68
60	MO322060293/0	R.H Roller Cover Mp2 50 [Black] + Logo	Out of stock	£12.19 £10.16
