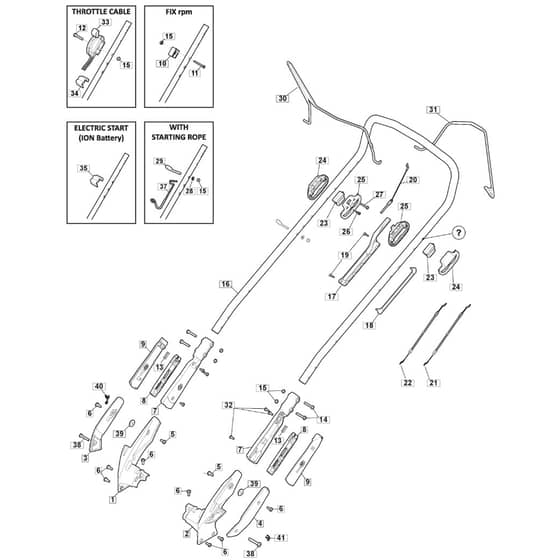

S501R PD - 2016-2018 - 294519043/M16 - Mountfield Rotary Mower Handle Diagram

Name: S501R PD - 2016-2018 - 294519043/M16 - Mountfield Rotary Mower Handle Diagram
SKU: s501r_pd_294519043_m16_handle-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S501R PD - 2016-2018 - 294519043/M16 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield S501R PD Parts Diagram

Product Name - S501R PD

Model Year - 2016-2018

Model Type - MP2 504 S-R

Art.N - 294519043/M16

Engine Model - ST55

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005219/1 In stock	Right Bracket	£33.10 £27.58
2	MO381005221/1 Out of stock	Left Bracket From 03-10-2016	£30.55 £25.46
3	MO381005239/0 Out of stock	Cover. Right From 03-10-2016	£12.73 £10.61
3	MOREPLA0000042 Out of stock	Cover. Right To 03-10-2016	£45.83 £38.19
4	MOREPLA0000043 Out of stock	Cover. Left To 03-10-2016	£43.28 £36.07
4	MO381005241/0 Out of stock	Cover. Left From 03-10-2016	£12.73 £10.61
5	MO122517885/0 Out of stock	Pin	£3.08 £2.57
6	MO112735664/0 In stock	Screw	£1.34 £1.12
7	MO381005243/0 In stock	External Guide From 17-10-2016	£23.04 £19.20
8	MO322246106/0 Out of stock	Cursor	£12.22 £10.18
9	MOREPLA0000040 Out of stock	Cursor Guide OLD aluminium parts its necessary to supply new version and new version ..1 of handle To 17-10-2016	£38.18 £31.82
9	MO381005245/0 Out of stock	Internal Guide From 17-10-2016	£15.14 £12.62
10	MO322551684/0 Out of stock	Cable Holder Ø25 From S.N 20BA2WBH072916	£8.40 £7.00
10	MO322551639/0 In stock	Cable Holder To S.N 20BA2WBH072915	£13.50 £11.25
11	MO112727784/0 Out of stock	Screw for FIX rpm	£1.34 £1.12
12	MO112727786/0 Out of stock	Screw for Throttle Cable	£1.87 £1.56
13	MO125430202/1 Out of stock	Spring	£1.61 £1.34
14	MO112727799/0 Out of stock	Screw	£1.74 £1.45
15	MO112154510/0 In stock	Nut	£1.48 £1.23
16	MO381007578/1 Out of stock	Handle. Upper Part OLD aluminium parts its necessary to supply new version and new version ..1 of handle To 17-10-2016	£81.48 £67.90
16	MO381007595/1 Out of stock	Handle. Upper Part	£81.48 £67.90
17	MO322806652/0 Out of stock	Internal Support. Black	£6.24 £5.20
18	MO322806653/0 Out of stock	External Support. Black	£4.84 £4.03
19	MO112728713/0 Out of stock	Screw	£1.34 £1.12
20	MO381030123/0 Out of stock	Cable Com. Cursor. Assy	£9.55 £7.96
21	MO381030118/0 In stock	Clutch Cable	£18.84 £15.70
22	MO181030070/0 In stock	Cable. Thread Engine Brake	£14.77 £12.31
23	MO322394544/0 Out of stock	Lever. Black	£2.93 £2.44
24	MO322722839/0 Out of stock	External Protection. Black	£3.31 £2.76
25	MO322722838/0 Out of stock	Internal Protection. Black	£3.31 £2.76
26	MO112728696/0 Out of stock	Screw	£1.48 £1.23
27	MO112728705/0 Out of stock	Screw	£2.54 £2.12
28	MO112521330/0 Out of stock	Washer	£1.48 £1.23
29	MO122430313/0 In stock	Guide Spring For models without electric start	£3.74 £3.12
30	MO181003490/0 Out of stock	Control Lever To 25-3-2021	£38.20 £31.83
30	MO181003437/0 Out of stock	Lever. Engine Brake Black From 26-3-2021	£39.47 £32.89
31	MO181003438/1 Out of stock	Drive Control Lever	£31.82 £26.52
32	MO112735651/0 Out of stock	Screw	£1.48 £1.23
33	MO181005541/0 Out of stock	Throttle Cable	£26.74 £22.28
35	MO118390020/0 In stock	Conduit Clip	£1.74 £1.45
37	MO122430318/0 In stock	Guide Spring For models without electric start	£11.11 £9.26
38	MO112735660/0 Out of stock	Screw	£1.48 £1.23
39	MO9694-0001-00 Out of stock	Washer	£1.66 £1.38
40	MO122430323/0 Out of stock	Spring	£2.54 £2.12
