S481 PD LS - 2019-2020 - 294502543/M19 - Mountfield Rotary Mower Engine Diagram

Description

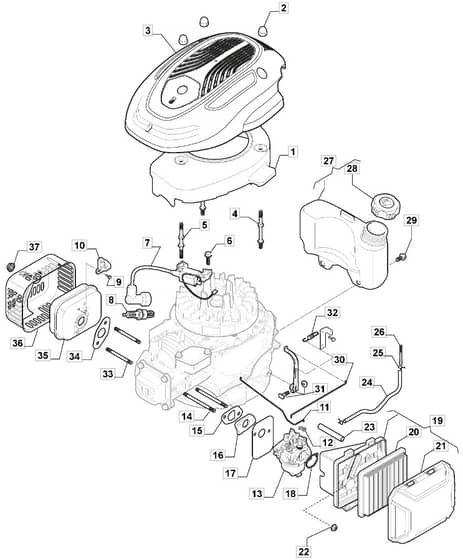

Mountfield S481 PD LS Parts Diagram

Product Name - S481 PD LS

Model Year - 2019-2020

Model Type - MP1 504 SQE

Art.N - 294502543/M19

Engine Model - ST170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551788/0 Out of stock	Blower Housing	£37.93 £31.61
3	MO118551469/0 In stock	Starter Assy	Was £25.98 £21.65 Special Price £17.15 £14.29
6	MO112791500/0 Out of stock	Screw	£1.49 £1.24
7	MO118551474/0 Out of stock	Elettronic Coil	£48.16 £40.13
8	3381 In stock	Spark Plug (RC12YC)	£4.44 £3.70
9	MO112789000/0 Out of stock	Screw	£1.49 £1.24
10	MO118551456/0 Out of stock	Choke Control	£22.75 £18.96
11	MO118551459/0 Out of stock	Control Rod	£8.06 £6.72
12	MO118551352/0 Out of stock	Retainer	£3.53 £2.94
13	MO118551450/1 In stock	Carburettor	£73.14 £60.95
15	MO118550929/0 In stock	Gasket	£1.49 £1.24
16	MO118550928/0 In stock	Insulator. Carburettor	£2.84 £2.37
17	MO118550927/0 Out of stock	Gasket	£4.60 £3.83
18	MO118551124/0 Out of stock	Gasket	£4.60 £3.83
19	MO118551462/0 Out of stock	Air Cleaner Assy	£32.51 £27.09
20	MO118550257/0 In stock	Air Filter	£11.17 £9.31
21	MO118551463/0 Out of stock	Air Cleaner Cover	£23.16 £19.30
22	MO112292102/0 Out of stock	Nut	£1.63 £1.36
23	MO118551479/0 Out of stock	Breather Fuel Pipe	£7.38 £6.15
24	MO118551480/1 Out of stock	Fuel Pipe	£6.10 £5.08
25	MO118550918/0 Out of stock	Pipe Clip	£1.49 £1.24
26	MO118550314/0 Out of stock	Fuel Filter	£4.20 £3.50
27	MO118551452/0 Out of stock	Tank	£40.63 £33.86
28	MO118551455/0 Out of stock	Fuel Cap	£12.49 £10.41
29	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
30	MO118551457/0 Out of stock	Governor Link	£7.32 £6.10
31	MO118550933/0 Out of stock	Arm Governor	£5.96 £4.97
32	MO118551458/0 Out of stock	Spring	£1.75 £1.46
33	MO118550930/0 Out of stock	Stud Bolt	£5.54 £4.62
34	MO118550898/0 Out of stock	Gasket. Muffler	£2.30 £1.92
35	MO118551465/0 Out of stock	Muffler	£31.15 £25.96
36	MO118551466/0 Out of stock	Muffler Guard	£22.90 £19.08
