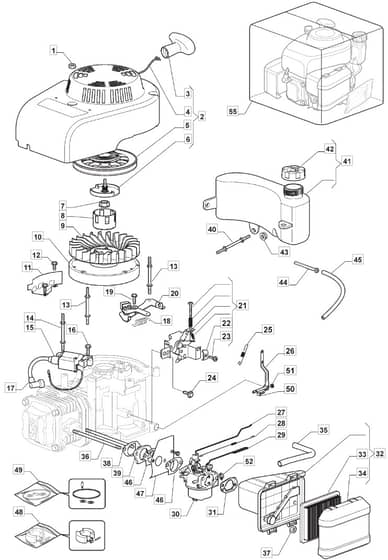

S481 PD - 2017-2018 - 294502043/M17 - Mountfield Rotary Mower Engine Diagram

Name: S481 PD - 2017-2018 - 294502043/M17 - Mountfield Rotary Mower Engine Diagram
SKU: s481_pd_294502043_m17_engine-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S481 PD - 2017-2018 - 294502043/M17 - Mountfield Rotary Mower Engine Diagram

Description

Mountfield S481 PD Parts Diagram

Product Name - S481 PD

Model Year - 2017-2018

Model Type - MP1 504 S

Art.N - 294502043/M17

Engine Model - ST55 OHV

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118550276/1 In stock	Starter Assy	£49.55 £41.29
3	MO118550274/0 Out of stock	Starter Handle	£14.72 £12.27
4	MO118550779/0 Out of stock	Starting Rope	£6.83 £5.69
5	MO118550778/0 Out of stock	Starter Pulley	£25.57 £21.31
6	MO118550275/1 In stock	Starter Pawl Set	£11.65 £9.71
7	MO118550336/0 Out of stock	Nut	£5.76 £4.80
8	MO118550335/0 Out of stock	Starter Cup	£21.42 £17.85
9	MO118550254/0 Out of stock	Flywheel Fan	£19.88 £16.57
10	MO118550253/0 Out of stock	Flywheel Ass.Y	£91.06 £75.88
11	MO118550774/0 Out of stock	Guard	£7.16 £5.97
14	MO118550301/0 Out of stock	Stud Bolt	£6.29 £5.24
15	MO118550255/1 In stock	Electronic Coil	£50.88 £42.40
17	MO118551274/0 Out of stock	Spark Plug Cap	£8.30 £6.92
19	MO112791500/0 Out of stock	Screw	£1.48 £1.23
20	MO118551205/0 Out of stock	Flywheel Brake	£29.46 £24.55
21	MO118550259/0 Out of stock	Remote Control Assy	£28.12 £23.43
23	MO118550338/0 Out of stock	Screw	£6.70 £5.58
24	MO112791213/1 Out of stock	Screw	£1.48 £1.23
25	MO118550260/0 In stock	Spring	£3.74 £3.12
26	MO118550266/0 Out of stock	Arm Governor Assy	£14.33 £11.94
27	MO118550397/0 Out of stock	Governor Link	£2.81 £2.34
28	MO118550263/0 Out of stock	Spring	£2.68 £2.23
29	MO118550264/0 Out of stock	Choke Control Rod	£3.35 £2.79
30	MO118550390/0 In stock	Carburetor	£72.98 £60.82
31	MO118550738/0 Out of stock	Air Filter Gasket	£6.02 £5.02
32	MO118550737/0 In stock	Air Cleaner Assy	£22.50 £18.75
33	MO118550257/0 In stock	Air Filter	£11.05 £9.21
34	MO118550739/0 In stock	Air Cleaner Cover	£7.16 £5.97
35	MO118550377/0 Out of stock	Breather Fuel Pipe	£4.28 £3.57
36	MO118550930/0 Out of stock	Stud Bolt	£5.50 £4.58
37	MO112292102/0 Out of stock	Nut	£1.61 £1.34
38	MO118550929/0 In stock	Gasket	£1.48 £1.23
39	MO118550928/0 In stock	Insulator. Carburettor	£2.81 £2.34
40	MO118550315/0 Out of stock	Stud Bolt	£7.37 £6.14
41	MO118550316/1 Out of stock	Fuel Tank	£40.18 £33.48
42	MO118550943/1 In stock	Fuel Cap	£14.72 £12.27
44	MO118550314/0 In stock	Fuel Filter	£4.15 £3.46
45	MO118550340/0 In stock	Fuel Pipe	£7.50 £6.25
46	MO118551122/0 Out of stock	Carburetor Gasket	£2.15 £1.79
47	MO118551266/0 Out of stock	Carburetor Gasket	£6.90 £5.75
48	MO118550388/0 Out of stock	Kit Repair. Carburettor	£13.93 £11.61
49	MO118550389/0 In stock	Kit Repair	£9.17 £7.64
52	MO118550918/0 Out of stock	Pipe Clip	£1.48 £1.23
55	MO118550408/0 Out of stock	Engine Assembly 160Cc	£276.96 £230.80
