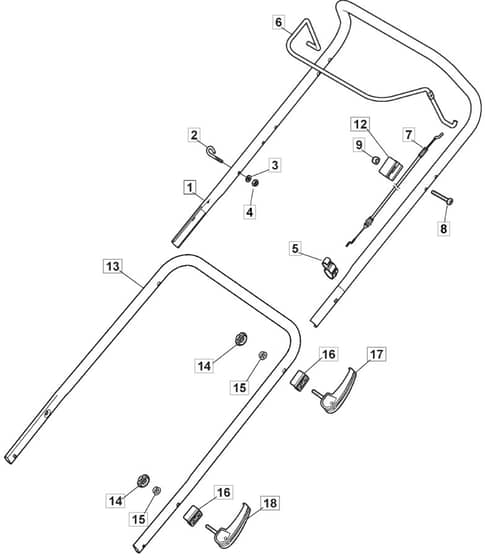

S481 HP - 2017-2018 - 294501043/M17 - Mountfield Rotary Mower Handle Diagram

Name: S481 HP - 2017-2018 - 294501043/M17 - Mountfield Rotary Mower Handle Diagram
SKU: s481_hp_294501043_m17_handle-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S481 HP - 2017-2018 - 294501043/M17 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield S481 HP Parts Diagram

Product Name - S481 HP

Model Year - 2017-2018

Model Type - MP1 504

Art.N - 294501043/M17

Engine Model - ST45 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006739/2 In stock	Handle	£21.65 £18.04
1	MO381006745/3 In stock	Handle	£39.47 £32.89
2	MO122430313/0 In stock	Guide Spring	£3.74 £3.12
3	MO112521330/0 Out of stock	Washer	£1.48 £1.23
5	MO118390020/0 In stock	Conduit Clip	£1.74 £1.45
6	MO181003363/1 Out of stock	Lever. Engine Brake Black Black	£14.14 £11.78
7	MO181030105/0 In stock	Cable. Thread Engine Brake	£13.75 £11.46
8	MO112727783/0 Out of stock	Screw	£1.61 £1.34
9	MO112154510/0 In stock	Nut	£1.48 £1.23
12	MO322551685/0 In stock	Cable Holder Ø22	£7.13 £5.94
13	MO381007563/1 Out of stock	Lower Handle	£35.65 £29.71
14	MO322399835/0 Out of stock	Black Knob	£1.91 £1.59
15	MO122131750/0 In stock	Nut	£1.87 £1.56
18	MO381103359/1 In stock	Locking Handle Lever L	£4.84 £4.03
