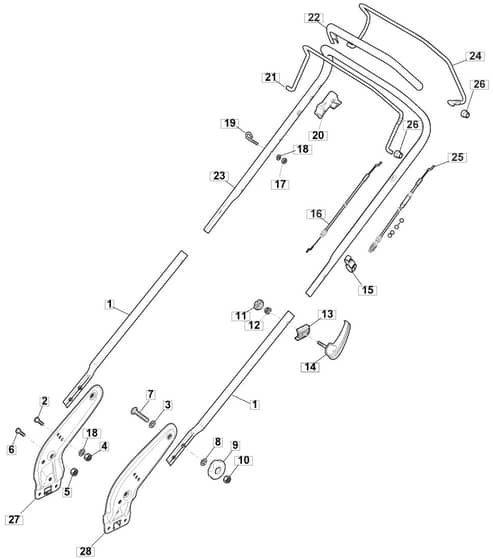

S461R PD LS - 2019-2020 - 299489543/M19 - Mountfield Rotary Mower Upper Handle Diagram

Name: S461R PD LS - 2019-2020 - 299489543/M19 - Mountfield Rotary Mower Upper Handle Diagram
SKU: s461r_pd_ls_299489543_m19_upper_handle-group
Price: 1.00 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461R PD LS - 2019-2020 - 299489543/M19 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield S461R PD LS Parts Diagram

Product Name - S461R PD LS

Model Year - 2019-2020

Model Type - NTL 484 TR/E-R

Art.N - 299489543/M19

Engine Model - ST170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007048/0 Out of stock	Handle. Lower Part Black	£29.28 £24.40
2	MO112727803/0 Out of stock	Screw	£1.48 £1.23
3	MO112543002/0 Out of stock	Washer	£1.20 £1.00
5	MO112155000/0 In stock	Nut	£1.48 £1.23
6	MO112760605/0 In stock	Screw	£3.22 £2.68
7	MO112819121/0 In stock	Screw	£1.87 £1.56
8	MO112523060/0 In stock	Washer	£1.48 £1.23
9	MO122399900/0 In stock	Black Knob	£1.48 £1.23
10	MO112293200/0 In stock	Nut	£1.48 £1.23
11	MO322399835/0 Out of stock	Black Knob	£1.91 £1.59
12	MO122131750/0 In stock	Nut	£1.87 £1.56
13	MO322680016/0 In stock	Handle Fixing Washer	£1.66 £1.38
14	MO381103360/0 Out of stock	Locking Handle Lever	£5.22 £4.35
15	MO118390020/0 In stock	Conduit Clip	£1.74 £1.45
16	MO181030053/0 In stock	Cable. Thread Engine Brake	£14.77 £12.31
17	MO112154510/0 In stock	Nut	£1.48 £1.23
18	MO112521330/0 Out of stock	Washer	£1.48 £1.23
19	MO122430313/0 In stock	Guide Spring	£3.74 £3.12
20	MO322545204/0 In stock	Fulcrum Pin	£1.52 £1.27
21	MO181003300/1 In stock	Lever. Engine Brake	£14.26 £11.88
22	MO122291050/0 Out of stock	Handgrip Black	£13.52 £11.27
23	MO381006838/0 Out of stock	Handle. Upper Part Black	£30.55 £25.46
24	MO181003301/0 In stock	Drive Control Lever	£14.14 £11.78
25	MO381030051/1 In stock	Cable Rear Drive	£16.33 £13.61
26	MO122041966/0 In stock	Bushing	£1.48 £1.23
27	MO381005149/0 Out of stock	Right Bracket Black	£14.26 £11.88
28	MO381005151/0 Out of stock	Left Handle Bracket	£14.26 £11.88
