S461R PD ES - 2012-2017 - 299489543/M12 - Mountfield Rotary Mower Roller Diagram

Name: S461R PD ES - 2012-2017 - 299489543/M12 - Mountfield Rotary Mower Roller Diagram
SKU: s461r_pd_es_299489543_m12_roller-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461R PD ES - 2012-2017 - 299489543/M12 - Mountfield Rotary Mower Roller Diagram

Description

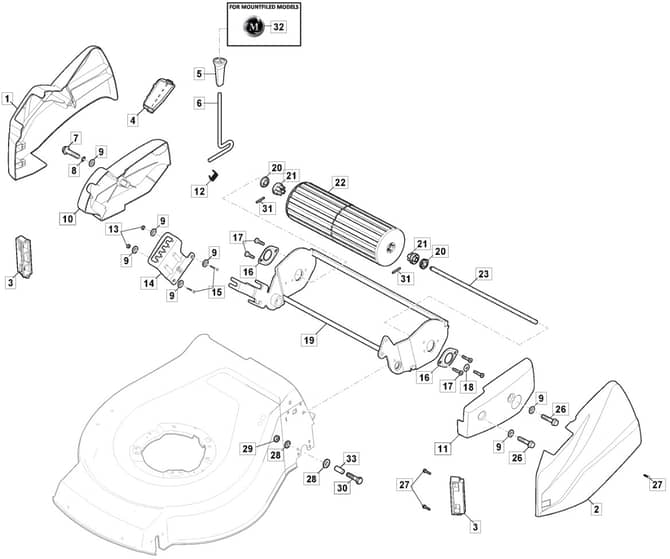

Mountfield S461R PD ES Parts Diagram

Product Name - S461R PD ES

Model Year - 2012-2017

Model Type - NTL 484 TR/E-R

Art.N - 299489543/M12

Engine Model - ST55 ES

Be the first to review this product

0 product questions

	Part No.	Details
2	MO322060290/0 Out of stock	Left Carter Black with Mountfield Logo	£9.89 £8.24
3	MO322546053/0 Out of stock	Plate	£2.58 £2.15
4	MO322570209/0 Out of stock	Plate	£8.12 £6.77
5	MO322394516/0 Out of stock	Knob	£3.92 £3.27
6	MO322321547/0 Out of stock	Lever. Height Adjustment	£8.40 £7.00
7	MO112735594/0 Out of stock	Screw	£1.49 £1.24
8	MO119035002/0 Out of stock	Or Ring	£2.04 £1.70
9	MO112523040/0 In stock	Washer	£1.49 £1.24
10	MO322060248/1 In stock	Right Protection	£6.77 £5.64
11	MO322060249/0 Out of stock	Left Protection To 31-8-2016	£6.64 £5.53
11	MO322060249/1 Out of stock	Left Protection From 01-9-2016	£6.64 £5.53
12	MO122446194/0 Out of stock	Spring	£3.38 £2.82
13	MO112154510/0 In stock	Nut	£1.49 £1.24
14	MO322735603/0 Out of stock	Sector. Height Adjustment	£8.53 £7.11
15	MO112727803/0 Out of stock	Screw	£1.49 £1.24
16	MO322207325/0 Out of stock	Bearing Flange	£1.90 £1.58
17	MO112735662/1 Out of stock	Screw	£2.30 £1.92
18	MO122671650/0 Out of stock	Washer	£1.49 £1.24
19	MO381005169/0 Out of stock	Support	£81.26 £67.72
20	MO119216036/0 In stock	Bearing	£9.22 £7.68
21	MO322855000/0 In stock	Tractor Roller	£2.58 £2.15
22	MO381007401/0 In stock	Roller	£36.56 £30.47
23	MO122033361/0 Out of stock	Axle. Roller	£15.84 £13.20
26	MO112735592/0 Out of stock	Screw	£1.90 £1.58
27	MO112728706/0 In stock	Screw	£1.49 £1.24
28	MO122671651/0 In stock	Washer	£1.90 £1.58
29	MO112155015/0 Out of stock	Nut	£1.63 £1.36
30	MO125580030/0 Out of stock	Belt Guide Peg To 31-8-2014	£4.33 £3.61
30	MO112691700/0 Out of stock	Screw From 01-9-2014	£1.75 £1.46
31	MO112620210/0 In stock	Elastic Pin	£1.49 £1.24
32	MO114366134/0 Out of stock	Label	£8.40 £7.00
33	MO122167840/0 Out of stock	Spacer	£1.49 £1.24
