S461R PD ES - 2009-2013 - 294489543/UM9 - Mountfield Rotary Mower Electric Start Diagram

Description

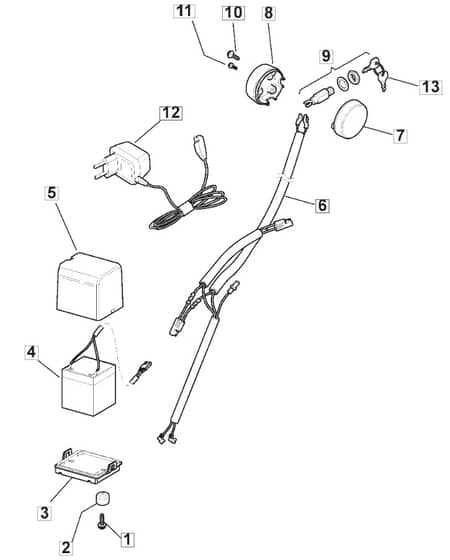

Mountfield S461R PD ES Parts Diagram

Product Name - S461R PD ES

Model Year - 2009-2013

Model Type - TD 484 TR/E

Art.N - 294489543/UM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112731590/0 Out of stock	Screw	£1.66 £1.38
1	MO112735105/0 Out of stock	Screw To 31-8-2003	£1.49 £1.24
2	MO125160012/0 Out of stock	Spacer	£15.16 £12.63
3	MO322785123/0 Out of stock	Battery Support	£4.74 £3.95
4	MO118120064/0 In stock	Battery	£44.70 £37.25
5	MO322109530/0 Out of stock	Battery Cover	£4.74 £3.95
6	MO118204192/3 Out of stock	Electric Start Wire	£35.57 £29.64
7	MO322722801/0 Out of stock	Starting Block Outer Half-Bearing	£1.75 £1.46
8	MO322722800/0 Out of stock	Starting Block Inner Half-Bearing	£10.09 £8.41
9	MO118450051/0 In stock	Starting Block	£17.88 £14.90
10	MO112728702/0 Out of stock	Screw From 01-9-2007	£1.49 £1.24
10	MO112728535/0 Out of stock	Screw To 31-8-2007	£1.49 £1.24
11	MO112728706/0 In stock	Screw	£1.49 £1.24
12	MO118204120/1LC In stock	Battery Charger	£25.72 £21.43
13	MO118210016/1 Out of stock	Starting Key	£12.34 £10.28
