S461R PD - 2019-2023 - 299489043/M19 - Mountfield Rotary Mower Transmission Diagram

Description

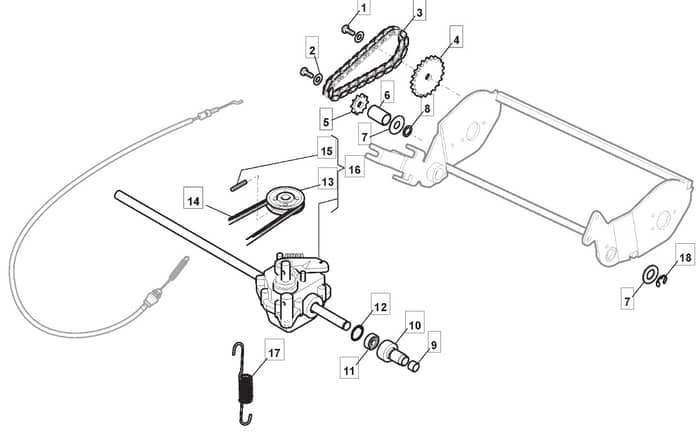

Mountfield S461R PD Parts Diagram

Product Name - S461R PD

Model Year - 2019-2023

Model Type - NTL 484 TR-R

Art.N - 299489043/M19

Engine Model - ST170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112735662/1 Out of stock	Screw	£2.30 £1.92
2	MO112523040/0 In stock	Washer	£1.49 £1.24
3	MO1111-3562-01 In stock	Chain	£19.31 £16.09
4	MO1111-3424-01 In stock	Ring Gear	£17.62 £14.68
5	MO1111-3423-01 Out of stock	Ring Gear	£14.23 £11.86
6	MO122170970/0 Out of stock	Spacer	£2.44 £2.03
7	MO322672151/0 Out of stock	Antifriction Washer	£1.75 £1.46
8	MO321660100/0 Out of stock	Washer	£1.90 £1.58
9	MO322038404/0 Out of stock	Brass	£1.49 £1.24
10	MO322785126/0 In stock	Gear Box Support	£11.10 £9.25
11	MO119216035/0 In stock	Bearing	£3.38 £2.82
12	MO112610095/0 Out of stock	Snap Ring	£1.63 £1.36
13	MO122601909/0 In stock	Pulley	£5.42 £4.52
14	MO1111-9123-01 Out of stock	Drive Belt Stiga Packed into 135063800.0	£8.90 £7.42
14	MO135063800/0 In stock	Trapezoidal Belt	£8.90 £7.42
15	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.49 £1.24
16	MO181003077/1 In stock	Gear Box	£100.24 £83.53
17	MO125430220/0 Out of stock	Brake Spring	£3.92 £3.27
18	MO112000957/0 Out of stock	Benzing Ring	£1.49 £1.24
