S461R PD - 2009 - 294489043/UM9 - Mountfield Rotary Mower Deck Diagram

Name: S461R PD - 2009 - 294489043/UM9 - Mountfield Rotary Mower Deck Diagram
SKU: s461r_pd_294489043_um9_deck-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461R PD - 2009 - 294489043/UM9 - Mountfield Rotary Mower Deck Diagram

Description

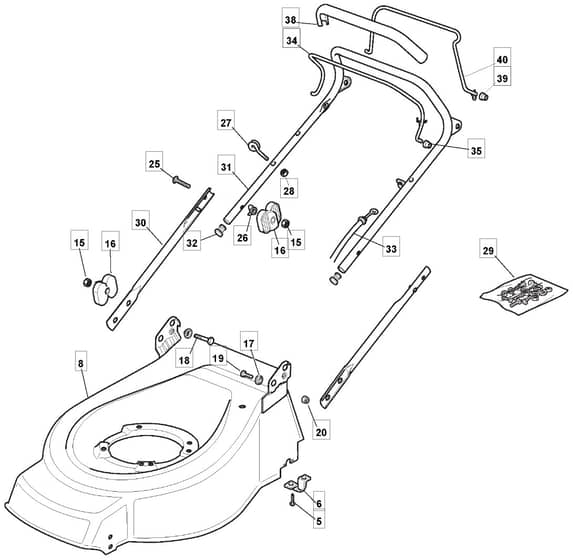

Mountfield S461R PD Parts Diagram

Product Name - S 461R PD

Model Year - 2009

Model Type - TD 484 TR

Art.N - 294489043/UM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112731350/0 Out of stock	Screw	£1.49 £1.24
6	MO322545154/0 Out of stock	Plate	£1.49 £1.24
15	MO112293202/0 Out of stock	Nut	£1.90 £1.58
16	MO122399803/0 Out of stock	Knob	£1.63 £1.36
17	MO322041955/0 Out of stock	Bushing	£1.49 £1.24
19	MO112792610/0 Out of stock	Screw	£1.49 £1.24
20	MO112155000/0 In stock	Nut	£1.49 £1.24
25	MO112819125/0 Out of stock	Screw	£1.39 £1.16
26	MO122680006/1 In stock	Washer	£1.75 £1.46
27	MO122430309/0 Out of stock	Spring	£2.98 £2.48
28	MO112154330/0 Out of stock	Nut	£1.49 £1.24
32	MO118566112/0 Out of stock	Polyethylene Push Road D.20Inch	£1.49 £1.24
33	MO181000611/0 Out of stock	Cable. Thread Engine Brake SV40 . RV 40 . V35 Engine	£13.34 £11.12
34	MO181003291/3 Out of stock	Lever. Engine Brake From 01-9-2006	£14.35 £11.96
35	MO122041966/0 In stock	Bushing	£1.49 £1.24
38	MO122291050/0 Out of stock	Handgrip Black	£13.68 £11.40
39	MO322041965/1 Out of stock	Bushing From 01-9-2004	£1.49 £1.24
40	MO181003288/1 Out of stock	Drive Control Lever	£11.17 £9.31
