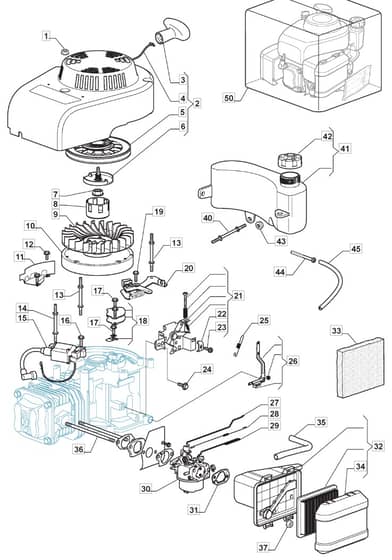

S461 PD - 2012-2014 - 295486043/M12 - Mountfield Rotary Mower WBE0702 Engine Diagram

Description

Mountfield S461 PD Parts Diagram

Product Name - S461PD

Model Year - 2012-2014

Model Type - CRL 484 WS

Art.N - 295486043/M12

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118550276/1 In stock	Starter Assy	£46.99 £39.16
3	MO118550274/0 Out of stock	Starter Handle	£13.97 £11.64
4	MO118550779/0 Out of stock	Starting Rope	£6.48 £5.40
5	MO118550778/0 Out of stock	Starter Pulley	£24.25 £20.21
6	MO118550275/1 In stock	Starter Pawl Set	£11.05 £9.21
7	MO118550336/0 Out of stock	Nut	£5.44 £4.53
8	MO118550335/0 Out of stock	Starter Cup	£20.32 £16.93
9	MO118550254/0 Out of stock	Flywheel Fan	£18.85 £15.71
10	MO118550253/0 Out of stock	Flywheel Ass.Y	£86.34 £71.95
11	MO118550774/0 Out of stock	Guard	£6.79 £5.66
13	MO118550302/0 Out of stock	Stud Bolt	£7.51 £6.26
14	MO118550301/0 Out of stock	Stud Bolt	£5.98 £4.98
15	MO118550255/1 In stock	Electronic Coil	£48.25 £40.21
17	MO112790500/0 Out of stock	Screw	£1.78 £1.48
18	MO118550378/0 Out of stock	Gasket Assy	£20.83 £17.36
19	MO112791500/0 Out of stock	Screw	£1.39 £1.16
20	MO118550376/0 Out of stock	Flywheel Brake Assy	£35.57 £29.64
21	MO118550259/0 Out of stock	Remote Control Assy	£26.66 £22.22
23	MO118550338/0 Out of stock	Screw	£6.35 £5.29
24	MO112791213/1 Out of stock	Screw	£1.39 £1.16
25	MO118550260/0 In stock	Spring	£3.56 £2.97
26	MO118550266/0 Out of stock	Arm Governor Assy	£13.60 £11.33
27	MO118550397/0 Out of stock	Governor Link	£2.66 £2.22
28	MO118550263/0 Out of stock	Spring	£2.54 £2.12
29	MO118550264/0 Out of stock	Choke Control Rod	£3.17 £2.64
30	MO118550390/0 Out of stock	Carburetor	£69.20 £57.67
31	MO118550738/0 Out of stock	Air Filter Gasket	£5.74 £4.78
32	MO118550737/0 In stock	Air Cleaner Assy	£21.34 £17.78
33	MO118550452/0 In stock	Air Filter	£7.76 £6.47
34	MO118550739/0 In stock	Air Cleaner Cover	£6.79 £5.66
35	MO118550377/0 Out of stock	Breather Fuel Pipe	£4.06 £3.38
36	MO118550298/0 Out of stock	Stud Bolt	£6.08 £5.07
40	MO118550315/0 Out of stock	Stud Bolt	£7.00 £5.83
41	MO118550316/1 Out of stock	Fuel Tank	£38.09 £31.74
42	MO118550943/1 Out of stock	Fuel Cap	£5.74 £4.78
43	MO112292102/0 In stock	Nut	£1.54 £1.28
44	MO118550314/0 Out of stock	Fuel Filter	£3.94 £3.28
45	MO118550340/0 In stock	Fuel Pipe	£7.12 £5.93
50	MO118550407/1 Out of stock	Engine Assembled	£248.81 £207.34
