S461 PD - 2010-2011 - 299482143/M10 - Mountfield Rotary Mower WBE0702 Cylinder Diagram

Description

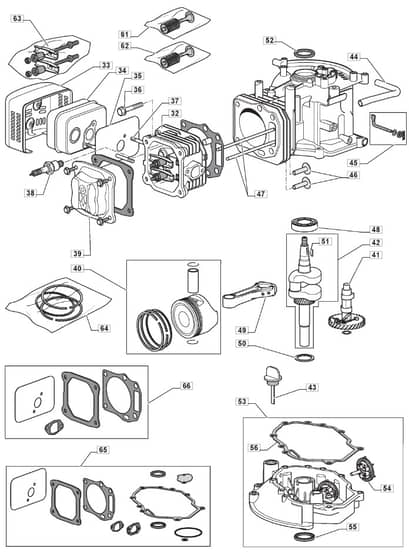

Mountfield S461 PD Parts Diagram

Product Name - S461PD

Model Year - 2010-2011

Model Type - NTL 484 TR

Art.N - 299482143/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550244/0 Out of stock	Cylinder Head Assy	£121.90 £101.58
33	MO118550268/1 Out of stock	Muffler Guard	£39.28 £32.73
34	MO118550269/0 Out of stock	Muffler	£33.86 £28.22
35	MO118550270/0 Out of stock	Muffler Gasket	£11.65 £9.71
36	MO118550297/0 In stock	Screw	Was £6.02 £5.02 Special Price £3.73 £3.11
37	MO118550298/0 Out of stock	Stud Bolt	£6.50 £5.42
38	3381 In stock	Spark Plug	£4.44 £3.70
39	MO118550296/1 Out of stock	Cover Comp. Head	£14.09 £11.74
40	MO118550387/0 Out of stock	Piston Assy	£52.82 £44.02
41	MO118550271/0 Out of stock	Camshaft Assy	£35.08 £29.23
42	MO118550385/0 Out of stock	Crankshaft	£91.06 £75.88
43	MO118550381/0 Out of stock	Tank Cap	£18.56 £15.47
44	MO118550377/0 Out of stock	Breather Fuel Pipe	£4.33 £3.61
45	MO118550308/0 Out of stock	Shaft. Governor Arm Assy	£9.96 £8.30
46	MO118550291/0 Out of stock	Valve Lifter Assy	£9.35 £7.79
66	MO118550405/0 Out of stock	Cylinder Head Gasket Set	£28.24 £23.53
