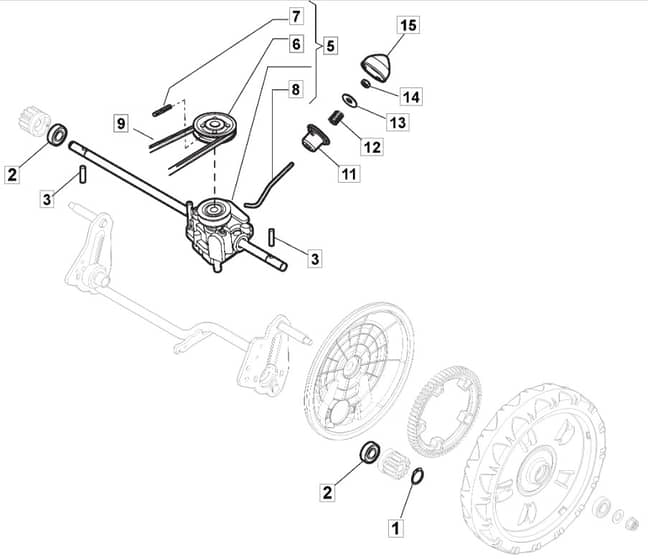

S460 PD - 2011 - 299482023/M11 - Mountfield Rotary Mower Transmission Diagram

S460 PD - 2011 - 299482023/M11 - Mountfield Rotary Mower Transmission Diagram
S460 PD - 2011 - 299482023/M11 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield S460 PD Parts Diagram

Product Name - S460PD

Model Year - 2011

Model Type - NTL 484 TR

Art.N - 299482023/M11

Ref. Img. Part No. Details
  1 Seeger
Seeger
MO112608600/0 In stock
Seeger
£1.48 £1.23

  0
MO122110230/0 In stock
£1.48 £1.23

  2 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.35 £2.79

  3 Pin
Pin
MO122753000/0 In stock
Pin
£1.48 £1.23

  5 Gear Box From 01-9-2012
Gear Box From 01-9-2012
MO181003076/1 Out of stock
Gear Box From 01-9-2012
£115.16 £95.97

  5 Gear Box To 31-8-2012
Gear Box To 31-8-2012
MO181003092/0 In stock
Gear Box To 31-8-2012
£107.80 £89.83

  6 Pulley
Pulley
MO122601909/0 In stock
Pulley
£5.35 £4.46

  7 Elastic Pin
Elastic Pin
MO112645700/0 Out of stock
Elastic Pin
£1.48 £1.23

  8 Adjustment Rod
Adjustment Rod
MO122033283/0 In stock
Adjustment Rod
£4.43 £3.69

  9 Trapezoidal Belt
Trapezoidal Belt
MO135063800/0 In stock
Trapezoidal Belt
£9.11 £7.59

  9 Drive Belt Stiga Packed into 135063800.0
Drive Belt Stiga Packed into 135063800.0
MO1111-9123-01 Out of stock
Drive Belt Stiga Packed into 135063800.0
£12.59 £10.49

  11 Bushing
Bushing
MO122041957/1 Out of stock
Bushing
£1.48 £1.23

  12 Spring
Spring
MO122450063/0 Out of stock
Spring
£1.48 £1.23

  13 Washer
Washer
MO322680009/0 Out of stock
Washer
£1.52 £1.27

  14 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23


Description

Mountfield S460 PD Parts Diagram

Product Name - S460PD

Model Year - 2011

Model Type - NTL 484 TR

Art.N - 299482023/M11
