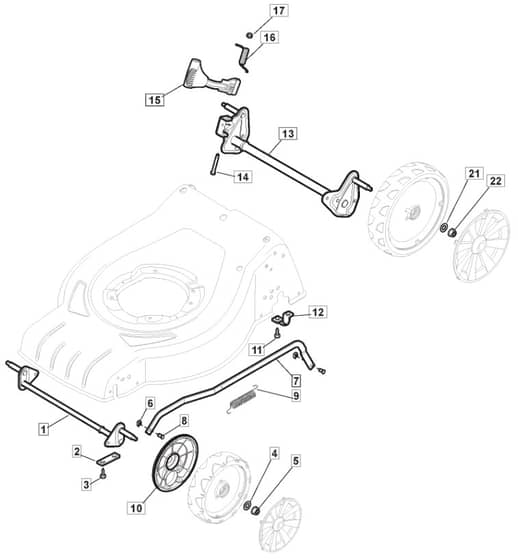

S460 HP - 2013 - 295485123/MFR - Mountfield Rotary Mower Height Adjusting Diagram

S460 HP - 2013 - 295485123/MFR - Mountfield Rotary Mower Height Adjusting Diagram
S460 HP - 2013 - 295485123/MFR - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield S460 HP Parts Diagram

Product Name - S 460 HP

Model Year - 2013

Model Type - CRL 484 W

Art.N - 295485123/MFR

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Front Wheel Axle To S.N 20BA2WBH054315 MO381302821/0
Front Wheel Axle To S.N 20BA2WBH054315
 Out of stock
£26.69 £22.24

  1 Front Wheel Axle From S.N 20BA2WBH054316 MO381302821/1
Front Wheel Axle From S.N 20BA2WBH054316
 Out of stock
£26.00 £21.67

  2 Plate MO322545142/0
Plate
 Out of stock
£1.49 £1.24

  6 Plate MO112436050/0
Plate
 In stock
£1.75 £1.46

  7 Rod. Height Adjustment From S.N 20BA2WBH070583 MO322869673/1
Rod. Height Adjustment From S.N 20BA2WBH070583
 Out of stock
£15.04 £12.53

  7 Rod. Height Adjustment To S.N 20CA2WBH077815 MO322869683/0
Rod. Height Adjustment To S.N 20CA2WBH077815
 Out of stock
£17.88 £14.90

  7 Rod. Height Adjustment To S.N 20BA2WBH070094 MO322869673/0
Rod. Height Adjustment To S.N 20BA2WBH070094
 Out of stock
£15.37 £12.81

  7 Rod. Height Adjustment From S.N 20CA2WBH077816 MO322869683/1
Rod. Height Adjustment From S.N 20CA2WBH077816
 Out of stock
£17.20 £14.33

  8 Pin MO122519820/0
Pin
 Out of stock
£2.04 £1.70

  9 Spring MO122446193/0
Spring
 Out of stock
£4.60 £3.83

  10 Protection. Wheel As Optional MO322600247/0
Protection. Wheel As Optional
 Out of stock
£4.33 £3.61

  11 Screw MO112728698/0
Screw
 Out of stock
£1.48 £1.23

  12 Plate MO322545152/0
Plate
 Out of stock
£1.49 £1.24

  13 Rear Wheel Axle From S.N 20BA2WBH091976 MO381302815/1
Rear Wheel Axle From S.N 20BA2WBH091976
 Out of stock
£39.28 £32.73

  13 Rear Wheel Axle To S.N 20BA2WBH091975 MO381302815/0
Rear Wheel Axle To S.N 20BA2WBH091975
 Out of stock
£35.21 £29.34

  14 Pin MO122534131/0
Pin
 Out of stock
£1.49 £1.24

  15 Wheels Rear Adj. Lever for others brand models To S.N 20BA2WBH076280 MO381003357/0
Wheels Rear Adj. Lever for others brand models To S.N 20BA2WBH076280
 Out of stock
£6.36 £5.30

  15 Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718 MO381003457/0
Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718
 Out of stock
£12.31 £10.26

  16 Spring MO122446192/0
Spring
 Out of stock
£2.04 £1.70

  17 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  21 Washer MO112521350/0
Washer
 Out of stock
£1.49 £1.24

  22 Nut MO112155000/0
Nut
 Out of stock
£1.49 £1.24


Description

Mountfield S460 HP Parts Diagram

Product Name - S 460 HP

Model Year - 2013

Model Type - CRL 484 W

Art.N - 295485123/MFR
