S46 PD Li - 2017-2018 - 295486003/M17 - Mountfield Rotary Mower Handle Diagram

Name: S46 PD Li - 2017-2018 - 295486003/M17 - Mountfield Rotary Mower Handle Diagram
SKU: s46_pd_li_295486003_m17_handle-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

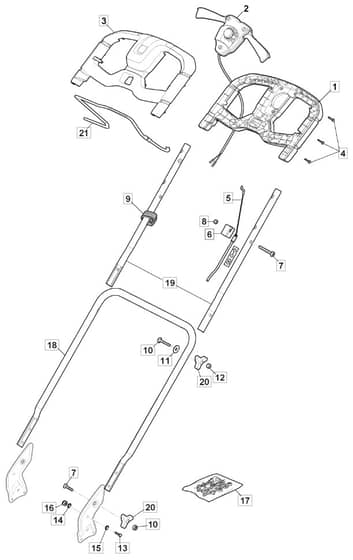

S46 PD Li - 2017-2018 - 295486003/M17 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield S46 PD Li Parts Diagram

Model Year - 2017-2018

Model Type - CRL 480 WS Li 80

Art.N - 295486003/M17

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322291079/0 Out of stock	Lower Half Handgrip Switch	£17.88 £14.90
3	MO322291078/0 Out of stock	Upper Half Handgrip Switch	£17.57 £14.64
4	MO112728711/0 Out of stock	Screw	£1.36 £1.13
5	MO381030085/0 In stock	Cable Rear Drive Only for Traction Models	£18.22 £15.18
6	MO322551685/0 In stock	Cable Holder Ø22	£7.24 £6.03
7	MO112727783/0 Out of stock	Screw Only for Traction Models	£1.63 £1.36
8	MO112154510/0 In stock	Nut	£1.49 £1.24
9	MO122192000/1 Out of stock	Clamp	£1.75 £1.46
10	MO112819110/0 In stock	Screw	£1.75 £1.46
11	MO122671651/0 In stock	Washer	£1.90 £1.58
12	MO112293200/0 Out of stock	Nut	£1.49 £1.24
13	MO112793701/0 Out of stock	Screw	£1.49 £1.24
14	MO112521350/0 In stock	Washer	£1.49 £1.24
15	MO112369500/0 Out of stock	Elastic Washer	£1.36 £1.13
16	MO112155000/0 In stock	Nut	£1.49 £1.24
17	MO381008691/0 Out of stock	Outfit. Screws Black	£8.27 £6.89
18	MO381006785/0 In stock	Handle. Lower Part Black Black	£24.65 £20.54
19	MO381007584/0 Out of stock	Handle. Upper Part Black	£15.72 £13.10
20	MO122399900/0 In stock	Black Knob Black	£1.49 £1.24
21	MO181003439/0 Out of stock	Drive Control Lever	£25.00 £20.83
