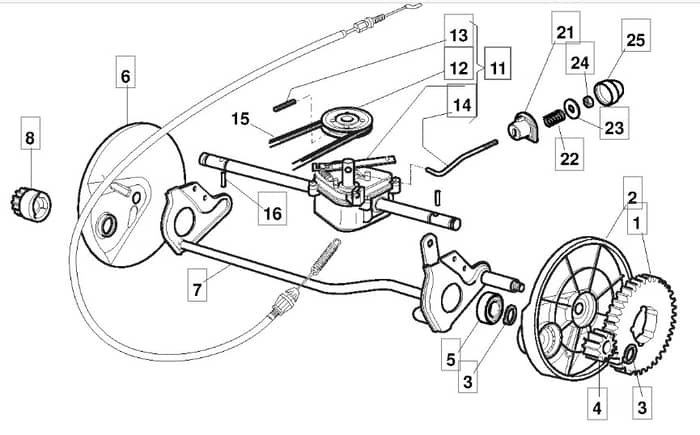

S422 PD - 2010 - 294435138/M10 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield S422 PD Parts Diagram

Product Name - S422 PD

Model Year - 2010

Model Type - TD 434 TR

Art.N - 294435138/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122120105/2 Out of stock	Ring Gear	£8.96 £7.47
2	MO122600093/0 Out of stock	Left Wheel Protection	£3.04 £2.53
3	MO112608600/0 In stock	Seeger	£1.39 £1.16
4	MO122570120/1 In stock	Left Pinion	£6.66 £5.55
5	MO119216035/0 In stock	Bearing	£3.17 £2.64
6	MO122600092/0 Out of stock	Right Wheel Protection	£3.04 £2.53
7	MO381000147/0 In stock	Rear Wheel Axle	Was £26.74 £22.28 Special Price £17.23 £14.36
8	MO322570138/0 In stock	Right Pinion	£6.66 £5.55
11	MO181003092/0 Out of stock	Gear Box (General Transmission) From 01-9-2005	£63.96 £53.30
11	MO181003076/1 Out of stock	G.T. Gear Box (General Transmission) From 01-9-2003 To 31-8-2005	£109.20 £91.00
11	MO181003081/1 Out of stock	Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2005	£130.82 £109.02
11	MO181003059/2 Out of stock	Gear Box (General Transmission) To 31-8-2003	£74.04 £61.70
12	MO122601909/0 In stock	Pulley	£5.09 £4.24
13	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.39 £1.16
14	MO122033283/0 In stock	Adjustment Rod (General Transmission)	£4.20 £3.50
16	MO122753000/0 In stock	Pin	£1.39 £1.16
21	MO122041957/1 Out of stock	Bushing	£1.39 £1.16
22	MO122450063/0 Out of stock	Spring	£1.39 £1.16
23	MO322680009/0 Out of stock	Washer	£1.66 £1.38
24	MO112154510/0 In stock	Nut	£1.39 £1.16
25	MO122110230/0 In stock	Hub Cover	£1.39 £1.16
