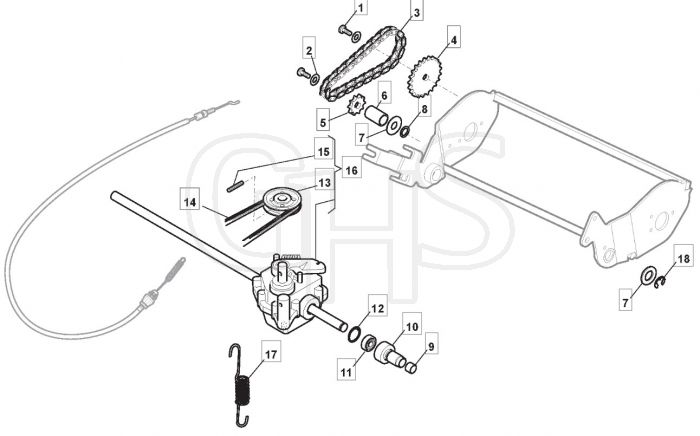

S421R PD - 2014-2018 - 299439043/M14 - Mountfield Rotary Mower Transmission Diagram

Name: S421R PD - 2014-2018 - 299439043/M14 - Mountfield Rotary Mower Transmission Diagram
SKU: s421r_pd_299439043_m14_transmission-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S421R PD - 2014-2018 - 299439043/M14 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield S421R PD Parts Diagram

Product Name - S421 R PD

Model Year - 2014-2018

Model Type - NTL 434 TR-R

Art.N - 299439043/M14

Engine Model - RS100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112735662/1 Out of stock	Screw	£2.17 £1.81
2	MO112523040/0 In stock	Washer	£1.39 £1.16
3	MO1111-3562-01 In stock	Chain	£18.11 £15.09
4	MO1111-3424-01 In stock	Ring Gear	£16.51 £13.76
5	MO1111-3423-01 Out of stock	Ring Gear	£13.34 £11.12
6	MO122170970/0 Out of stock	Spacer	£2.29 £1.91
7	MO322672151/0 Out of stock	Antifriction Washer	£1.66 £1.38
8	MO321660100/0 Out of stock	Washer	£1.78 £1.48
9	MO322038404/0 Out of stock	Brass	£1.39 £1.16
10	MO322785126/0 In stock	Gear Box Support	£10.40 £8.67
11	MO119216035/0 In stock	Bearing	£3.17 £2.64
12	MO112610095/0 Out of stock	Snap Ring	£1.54 £1.28
13	MO122601909/0 In stock	Pulley	£5.09 £4.24
14	MO135063710/0 In stock	Belt	£8.00 £6.67
15	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.39 £1.16
16	MO181003077/1 In stock	Gear Box	£93.97 £78.31
17	MO125430220/0 Out of stock	Brake Spring	£3.68 £3.07
18	MO112000957/0 Out of stock	Benzing Ring	£1.39 £1.16
