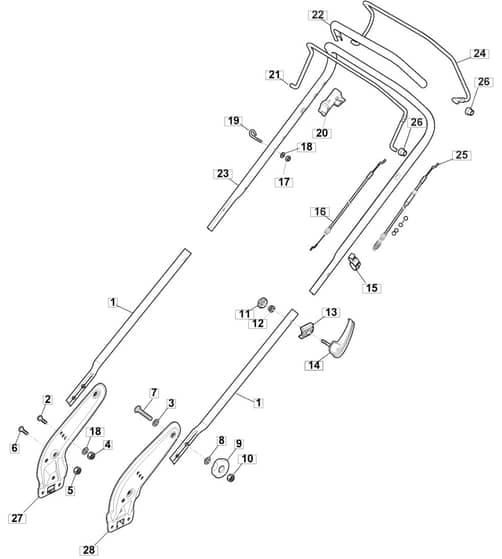

S421R PD - 2014-2018 - 299439043/M14 - Mountfield Rotary Mower Handle Diagram

S421R PD - 2014-2018 - 299439043/M14 - Mountfield Rotary Mower Handle Diagram
S421R PD - 2014-2018 - 299439043/M14 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield S421R PD Parts Diagram

Product Name - S421 R PD

Model Year - 2014-2018

Model Type - NTL 434 TR-R

Art.N - 299439043/M14

Engine Model - RS100 OHV

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Handle. Lower Part Black MO381007048/0
Handle. Lower Part Black
 Out of stock
£28.44 £23.70

  2 Screw MO112727803/0
Screw
 Out of stock
£1.49 £1.24

  3 Washer MO112543002/0
Washer
 Out of stock
£1.21 £1.01

  5 Nut MO112155000/0
Nut
 In stock
£1.49 £1.24

  6 Screw MO112760605/0
Screw
 In stock
£3.25 £2.71

  7 Screw MO112819121/0
Screw
 In stock
£1.90 £1.58

  8 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  9 Black Knob MO122399900/0
Black Knob
 In stock
£1.49 £1.24

  10 Nut MO112293200/0
Nut
 In stock
£1.49 £1.24

  11 Black Knob MO322399835/0
Black Knob
 Out of stock
£1.90 £1.58

  12 Nut MO122131750/0
Nut
 Out of stock
£1.90 £1.58

  13 Handle Fixing Washer MO322680016/0
Handle Fixing Washer
 In stock
£1.90 £1.58

  14 Locking Handle Lever MO381103360/0
Locking Handle Lever
 In stock
£5.28 £4.40

  15 Conduit Clip MO118390020/0
Conduit Clip
 In stock
£1.75 £1.46

  16 Cable. Thread Engine Brake MO181030053/0
Cable. Thread Engine Brake
 In stock
£15.04 £12.53

  17 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  18 Washer MO112521330/0
Washer
 Out of stock
£1.49 £1.24

  19 Guide Spring MO122430313/0
Guide Spring
 In stock
£3.79 £3.16

  20 Fulcrum Pin MO322545204/0
Fulcrum Pin
 In stock
£1.75 £1.46

  21 Lever. Engine Brake MO181003300/1
Lever. Engine Brake
 In stock
£14.63 £12.19

  22 Handgrip Black MO122291050/0
Handgrip Black
 Out of stock
£13.68 £11.40

  23 Handle. Upper Part Black MO381006838/0
Handle. Upper Part Black
 Out of stock
£29.80 £24.83

  24 Drive Control Lever MO181003301/0
Drive Control Lever
 Out of stock
£14.35 £11.96

  25 Cable Rear Drive MO381030051/1
Cable Rear Drive
 In stock
£16.52 £13.77

  26 Bushing MO122041966/0
Bushing
 In stock
£1.49 £1.24

  27 Right Bracket Black MO381005149/0
Right Bracket Black
 Out of stock
£14.63 £12.19

  28 Left Bracket Black MO381005151/0
Left Bracket Black
 Out of stock
£14.63 £12.19


Description

Mountfield S421R PD Parts Diagram

Product Name - S421 R PD

Model Year - 2014-2018

Model Type - NTL 434 TR-R

Art.N - 299439043/M14

Engine Model - RS100 OHV
