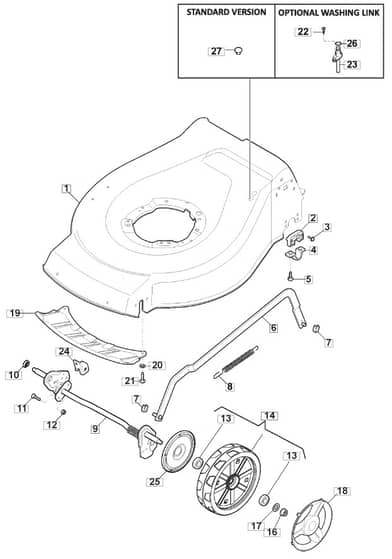

S421R HP - 2019-2022 - 299434043/M19 - Mountfield Rotary Mower Deck Diagram

S421R HP - 2019-2022 - 299434043/M19 - Mountfield Rotary Mower Deck Diagram
S421R HP - 2019-2022 - 299434043/M19 - Mountfield Rotary Mower Deck Diagram

Description

Mountfield S421R HP Parts Diagram

Product Name - S421 R HP

Model Year - 2019-2022

Model Type - NTL 434-R

Art.N - 299434043/M19

Engine Model - ST120 OHV Autochoke

Ref. Img. Part No. Details
  1 Red Deck
Red Deck
MO381004724/0 Out of stock
Red Deck
£165.50 £137.92

  2 Support
Support
MO322785304/1 Out of stock
Support
£2.29 £1.91

  4 Plate
Plate
MO322545154/0 Out of stock
Plate
£1.66 £1.38

  5 Screw
Screw
MO112728697/0 In stock
Screw
£1.48 £1.23

  6 Rod
Rod
MO381002052/0 Out of stock
Rod
£38.20 £31.83

  7 Plate
Plate
MO112436050/0 In stock
Plate
£1.74 £1.45

  8 Spring
Spring
MO122446193/0 Out of stock
Spring
£4.55 £3.79

  9 Axle
Axle
MO381302927/0 Out of stock
Axle
£31.82 £26.52

  10 Spacer
Spacer
MO122171002/0 Out of stock
Spacer
£1.48 £1.23

  11 Screw
Screw
MO112727803/0 Out of stock
Screw
£1.48 £1.23

  12 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  13 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.35 £2.79

  14 Wheel - Short Hub
Wheel - Short Hub
MO381007448/1 Out of stock
Wheel - Short Hub
£10.94 £9.12

  16 Nut
Nut
MO112155000/0 In stock
Nut
£1.48 £1.23

  17 Washer
Washer
MO112521350/0 In stock
Washer
£1.48 £1.23

  18 Hub Cap Grey
Hub Cap Grey
MO322110687/0 Out of stock
Hub Cap Grey
£2.42 £2.02

  19 Front Combi
Front Combi
MO322500108/0 Out of stock
Front Combi
£5.72 £4.77

  20 Washer
Washer
MO112523000/1 Out of stock
Washer
£1.48 £1.23

  21 Screw
Screw
MO112728124/0 Out of stock
Screw
£1.48 £1.23

  22 Screw Only With Muclhing
Screw Only With Muclhing
MO112728450/0 In stock
Screw Only With Muclhing
£1.48 £1.23

  23 Washing Connection Only With Muclhing
Washing Connection Only With Muclhing
MO322034002/0 Out of stock
Washing Connection Only With Muclhing
£1.66 £1.38

  24 Bracket
Bracket
MO325755031/2 Out of stock
Bracket
£4.84 £4.03

  25 Protection. Wheel
Protection. Wheel
MO322600247/0 Out of stock
Protection. Wheel
£4.33 £3.61

  26 Or Ring
Or Ring
MO119035000/0 Out of stock
Or Ring
£4.82 £4.02

  27 Cap
Cap
MO322820077/1 Out of stock
Cap
£1.66 £1.38


Description

Mountfield S421R HP Parts Diagram

Product Name - S421 R HP

Model Year - 2019-2022

Model Type - NTL 434-R

Art.N - 299434043/M19

Engine Model - ST120 OHV Autochoke
