S421 PD - 2012-2018 - 295432043/M12 - Mountfield Rotary Mower Transmission Diagram

Name: S421 PD - 2012-2018 - 295432043/M12 - Mountfield Rotary Mower Transmission Diagram
SKU: s421_pd_295432043_m12_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

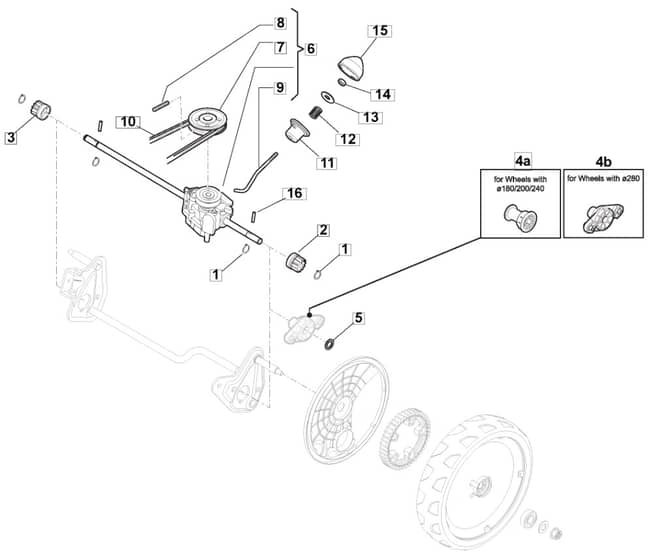

S421 PD - 2012-2018 - 295432043/M12 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield S421 PD Parts Diagram

Product Name - S 421 PD

Model Year - 2012-2018

Model Type - CR 434 S

Art.N - 295432043/M12

Engine Model - RS100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 Out of stock	Seeger	£1.49 £1.24
2	MO122570120/1 In stock	Left Pinion	£7.12 £5.93
3	MO322570138/0 In stock	Right Pinion	£7.12 £5.93
4	MO322042066/0 Out of stock	Bushing - A For wheels ø180.200.240	£1.75 £1.46
5	MO112521371/0 Out of stock	Washer	£1.49 £1.24
6	MO181003092/0 Out of stock	Gear Box	£63.96 £53.30
7	MO122601909/0 In stock	Pulley	£5.42 £4.52
8	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.49 £1.24
9	MO122033283/0 In stock	Adjustment Rod	£4.48 £3.73
10	MO135063710/0 Out of stock	Belt	£8.24 £6.87
11	MO122041957/1 Out of stock	Bushing	£1.49 £1.24
12	MO122450063/0 Out of stock	Spring	£1.49 £1.24
13	MO322680009/0 Out of stock	Washer	£1.75 £1.46
14	MO112154510/0 In stock	Nut	£1.49 £1.24
15	MO122110230/0 In stock	Hub Cover	£1.49 £1.24
16	MO122753000/0 In stock	Pin	£1.49 £1.24
