S421 HP - 2012-2018 - 295431043/M12 - Mountfield Rotary Mower Lower Handle Diagram

Description

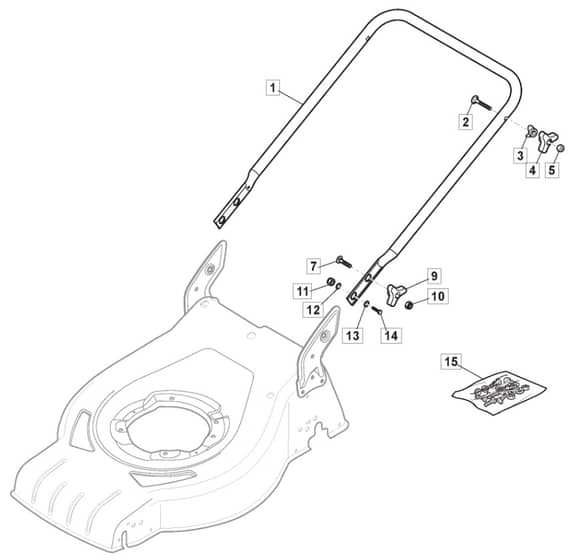

Mountfield S421 HP Parts Diagram

Product Name - S 421 HP

Model Year - 2012-2018

Model Type - CR 434

Art.N - 295431043/M12

Engine Model - RS100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006785/0 In stock	Handle. Lower Part Black	£24.19 £20.16
2	MO112819110/0 In stock	Screw	£1.74 £1.45
3	MO122671651/0 In stock	Washer	£1.87 £1.56
7	MO112818900/0 In stock	Screw	£1.48 £1.23
9	MO122399900/0 In stock	Black Knob Black	£1.48 £1.23
10	MO112293200/0 In stock	Nut	£1.48 £1.23
11	MO112155000/0 In stock	Nut	£1.48 £1.23
12	MO112521350/0 In stock	Washer	£1.48 £1.23
13	MO112369500/0 Out of stock	Elastic Washer	£1.34 £1.12
14	MO112760605/0 In stock	Screw	£3.22 £2.68
15	MO381008691/0 In stock	Outfit. Screws Black	£8.15 £6.79
