S421 HP - 2010 - 294434043/UM9 - Mountfield Rotary Mower Throttle Diagram

Description

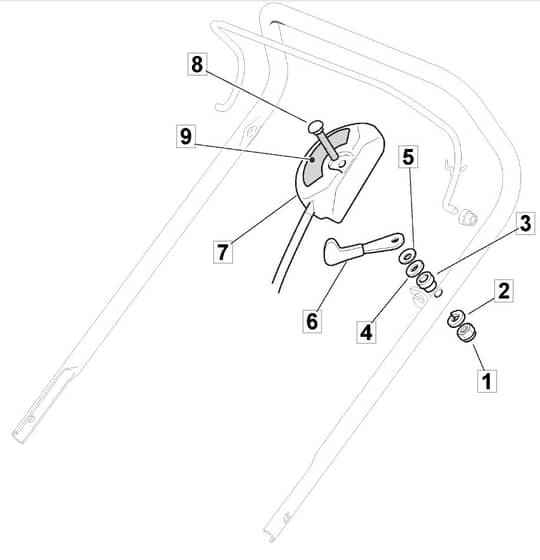

Mountfield S421 HP Parts Diagram

Product Name - S 421 HP

Model Year - 2010

Model Type - TD 434

Art.N - 294434043/UM9

	Part No.	Details
1	MO112291000/0 Out of stock	Nut	£1.48 £1.23
2	MO112581500/0 Out of stock	Grower	£1.48 £1.23
3	MO122171005/0 Out of stock	Spacer	£1.48 £1.23
4	MO112521360/0 In stock	Washer	£1.48 £1.23
5	MO112508100/0 Out of stock	Cup Spring	£1.48 £1.23
6	MO381007220/0 Out of stock	Throttle Lever SV40-RV 40-V35 Engine . B&S 450-500 Series From 01-9-2006	£24.19 £20.16
7	MO481007080/0 In stock	Throttle Cable	£23.04 £19.20
8	MO112815000/0 Out of stock	Screw	£1.48 £1.23
9	MO114356702/0 Out of stock	Throttle Decal	£1.87 £1.56
