S420 PD - 2009 - 294435023/UM9 - Mountfield Rotary Mower Deck Diagram

Description

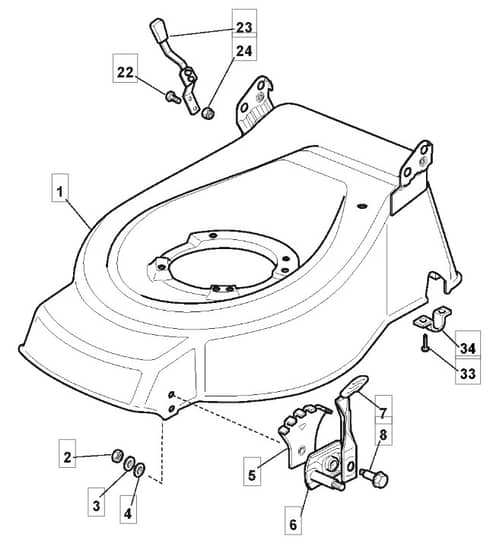

Mountfield S420 PD Parts Diagram

Product Name - S420PD

Model Year - 2009

Model Type - TD 434 TR

Art.N - 294435023/UM9

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112293200/0 In stock	Nut	£1.48 £1.23
3	MO112583500/0 Out of stock	Grower	£1.48 £1.23
4	MO112523070/0 Out of stock	Washer	£1.48 £1.23
5	MO322735547/0 Out of stock	Sector. Height Adjustment	£2.29 £1.91
6	MO381005082/0 In stock	Wheel Support	£16.32 £13.60
7	MO481003285/1 In stock	Lever	£8.65 £7.21
8	MO122519811/0 Out of stock	Pin	£1.48 £1.23
22	MO112789000/0 Out of stock	Screw	£1.48 £1.23
23	MO381003279/2 Out of stock	Adjustment Lever	£25.21 £21.01
24	MO112154330/0 Out of stock	Nut	£1.48 £1.23
33	MO112731350/0 Out of stock	Screw	£1.48 £1.23
34	MO322545152/0 In stock	Axle Bracket	£1.66 £1.38
