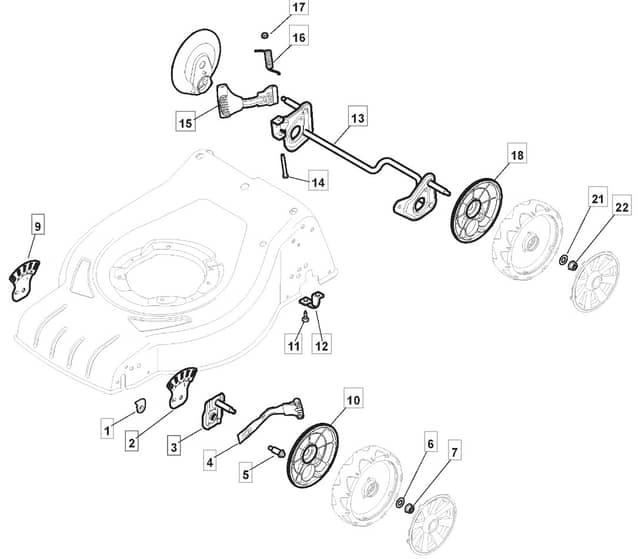

S42 PD Li - 2017 - 295432003/M17 - Mountfield Rotary Mower Height Adjusting Diagram

Name: S42 PD Li - 2017 - 295432003/M17 - Mountfield Rotary Mower Height Adjusting Diagram
SKU: s42_pd_li_295432003_m17_height_adjusting-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S42 PD Li - 2017 - 295432003/M17 - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield S42 PD Li Parts Diagram

Model Year - 2017

Model Type - CR 430 S Li 80

Art.N - 295432003/M17

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322545189/0 Out of stock	Plate	£1.49 £1.24
2	MO322735611/0 Out of stock	Sector. Height Adjustment From S.N 20BA2WBH058856	£2.58 £2.15
2	MO322735597/1 Out of stock	Sector	£2.58 £2.15
3	MO381005265/0 Out of stock	Wheel Support From S.N 20BA2WBH056550	£10.97 £9.14
3	MO381005159/0 Out of stock	Wheel Support	£10.16 £8.47
3	MO381005253/0 Out of stock	Wheel Support From S.N 20AA2WBH020538 - To S.N 20BA2WBH056549	£10.70 £8.92
4	MO381003354/0 Out of stock	Lever. Height Adjustment with Standard Black Knob	£6.64 £5.53
5	MO122519811/0 Out of stock	Pin	£1.49 £1.24
9	MO322735609/0 Out of stock	Sector. Height Adjustment From S.N 20BA2WBH064330	£2.58 £2.15
9	MO322735595/1 Out of stock	Sector	£2.58 £2.15
10	MO322600247/0 Out of stock	Protection. Wheel As Optional	£4.33 £3.61
11	MO112728698/0 Out of stock	Screw	£1.48 £1.23
12	MO322545152/0 Out of stock	Plate	£1.49 £1.24
13	MO381302819/0 Out of stock	Rear Wheel Axle To S.N 20BA2WBH060266	£29.80 £24.83
13	MO381302819/1 Out of stock	Rear Wheel Axle From S.N 20BA2WBH060267	£28.31 £23.59
14	MO122534131/0 Out of stock	Pin	£1.49 £1.24
15	MO381003356/1 Out of stock	Wheels Rear Adj. Lever From S.N 20BA2WBH076281	£5.54 £4.62
16	MO122446192/0 Out of stock	Spring	£2.04 £1.70
17	MO112154510/0 In stock	Nut	£1.49 £1.24
18	MO322600204/0 Out of stock	Internal Wheel Protectection	£3.12 £2.60
21	MO112521350/0 In stock	Washer	£1.49 £1.24
22	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.49 £1.24
