RV150 - 2006 - 118550034/0_050002 - Mountfield Engine Main Assembly Diagram

Description

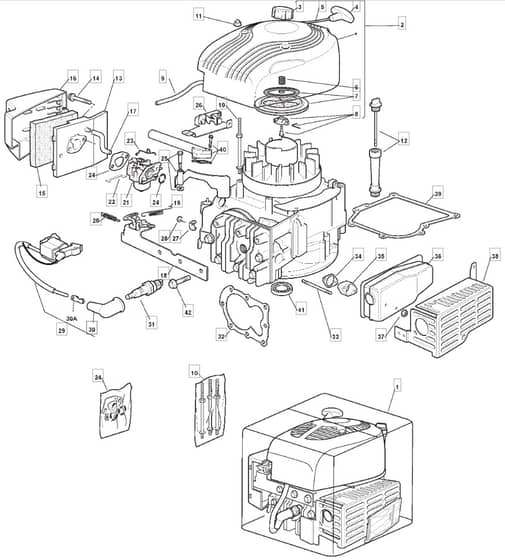

Mountfield RV150 Parts Diagram

Model Year - 2006

Model Type - RV150

Art.N - 118550034/0_050002

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118550509/0 In stock	Starter Assy	£53.34 £44.45
3	MO118550001/0 In stock	Fuel Cap	£4.84 £4.03
4	MO118550768/0 Out of stock	Starter Handle	£10.78 £8.98
5	MO118550053/0 In stock	Starter Cord	Was £2.15 £1.79 Special Price £1.42 £1.18
6	MO118550002/0 Out of stock	Starter Spring	£5.34 £4.45
7	MO118550003/0 Out of stock	Starter Ass.Y	£33.02 £27.52
8	MO118550004/1 In stock	Starter Pawl	£4.84 £4.03
10	MO118550006/0 Out of stock	Stud Bolt	£12.83 £10.69
11	MO118550007/0 Out of stock	Nut	£1.78 £1.48
12	MO118550008/0 Out of stock	Oil Dipstick & Oil Fill Tube Assy	£5.14 £4.28
15	MO118550011/0 In stock	Filter Element	£2.80 £2.33
16	MO118550133/0 In stock	Air Cleaner Cover	£4.94 £4.12
18	MO118550014/1 Out of stock	Control Bracket	£34.28 £28.57
26	MO118550021/0 Out of stock	Brake	£30.48 £25.40
28	MO118550023/0 Out of stock	Screw	£1.78 £1.48
29	MO118550126/0 In stock	Magneto Armature	£46.99 £39.16
30	MO118550127/0 Out of stock	Spark Plug Elbow Cover	£5.52 £4.60
31	3011 In stock	Spark Plug (Qj19Lm)	£3.12 £2.60
32	MO118550359/0 In stock	Cylinder Head Gasket Set	Was £5.89 £4.91 Special Price £3.89 £3.24
33	MO118550027/0 Out of stock	Double-Screw Bolt	£4.45 £3.71
34	MO118550028/0 Out of stock	Muffler Gasket	£4.22 £3.52
35	MO118550030/0 Out of stock	Spacer	£4.20 £3.50
37	MO118550032/0 Out of stock	Nut	£1.39 £1.16
38	MO118550033/0 Out of stock	Muffler Protection	£20.36 £16.97
39	MO118550130/0 Out of stock	Crankcase Gasket	£5.74 £4.78
40	MO118550129/0 Out of stock	Intake Manifold	£9.14 £7.62
41	MO118550131/0 Out of stock	Seal Ring	£7.88 £6.57
