RS100 BLUE OHV - 2011-2015 - 118550732/0_100002 - Mountfield Engine Diagram

Name: RS100 BLUE OHV - 2011-2015 - 118550732/0_100002 - Mountfield Engine Diagram
SKU: rs100_blue_ohv_118550732_0_100002_engine-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RS100 BLUE OHV - 2011-2015 - 118550732/0_100002 - Mountfield Engine Diagram

Description

Mountfield RS100 BLUE OHV Parts Diagram

Model Year - 2011-2015

Model Type - RSC100

Art.N - 118550732/0_100002

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550728/0 Out of stock	Brake Assy	£20.09 £16.74
40	MO118550727/0 Out of stock	Spring	£2.00 £1.67
41	MO118550717/0 Out of stock	Nut	£1.48 £1.23
42	MO118550718/0 Out of stock	Flywheel Ass.Y	£56.24 £46.87
43	MO118550661/0 Out of stock	Oil Seal	£3.35 £2.79
44	MO118550729/0 Out of stock	Cylinder Head Assy	£147.30 £122.75
48	MO118550660/0 Out of stock	Oil Filter	£2.94 £2.45
49	MO118550680/0 Out of stock	Gasket	£2.15 £1.79
50	MO118550681/0 Out of stock	Cover Comp. Head	£8.17 £6.81
53	MO118550672/0 Out of stock	Crankcase Cover Assy	£61.60 £51.33
54	MO118550668/0 Out of stock	Oil Seal	£3.89 £3.24
55	MO118550669/0 Out of stock	Tank Cap	£2.00 £1.67
56	MO118550670/0 Out of stock	Or Ring	£1.34 £1.12
57	MO118550664/0 Out of stock	Pin	£2.68 £2.23
61	MO118550674/0 Out of stock	Crankshaft	£68.96 £57.47
63	MO118550675/0 Out of stock	Connecting Rod Assy	£17.41 £14.51
64	MO118550678/0 Out of stock	Circlip + Piston Pin	£4.02 £3.35
65	MO118550677/0 Out of stock	Piston Assy	£36.16 £30.13
66	MO118550679/0 Out of stock	Piston. Ring Set	£13.39 £11.16
67	MO118550682/0 Out of stock	Camshaft Assy	£17.27 £14.39
69	MO118550662/0 Out of stock	Speed Governor Assy	£8.30 £6.92
70	MO118550665/0 Out of stock	Shaft. Governor Arm	£4.15 £3.46
72	MO118550671/0 Out of stock	Gasket	£2.15 £1.79
76	MO118550667/0 Out of stock	Cotter Pin	£1.61 £1.34
77	MO118550683/0 Out of stock	Valve Lifter	£4.82 £4.02
78	MO118550684/0 Out of stock	Push Rods	£8.04 £6.70
80	MO118550686/0 Out of stock	Screw	£3.35 £2.79
81	MO118550687/0 Out of stock	Valve Arm	£5.35 £4.46
82	MO118550688/0 Out of stock	Nut	£3.74 £3.12
83	MO118550689/0 Out of stock	Nut	£1.48 £1.23
87	MO118550725/0 In stock	Spring	£1.48 £1.23
89	MO112791500/0 Out of stock	Screw	£1.48 £1.23
90	MO112735699/0 Out of stock	Screw	£1.34 £1.12
91	MO118550692/0 Out of stock	Exhaust Valve Assy	£17.81 £14.84

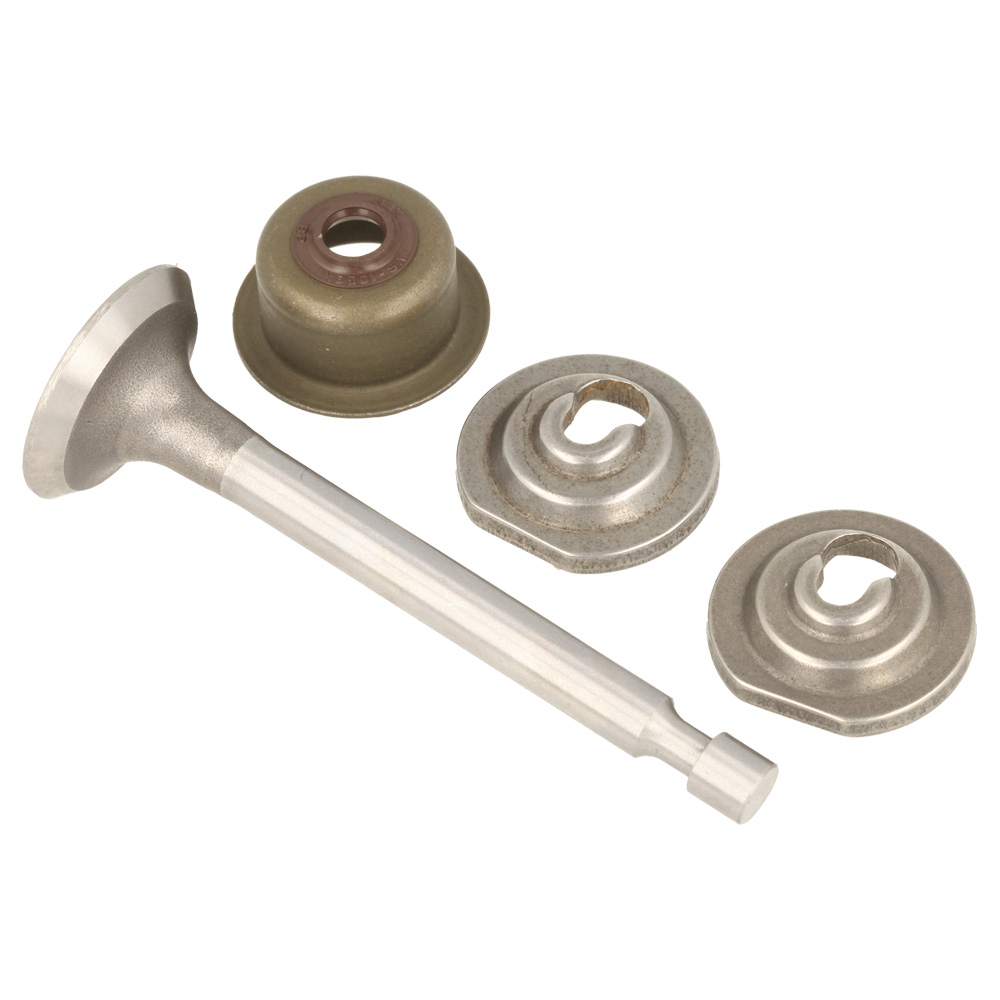

92	MO118550691/0 Out of stock	Intake Valve Assy	£20.62 £17.18
93	MO118550690/0 Out of stock	Spring	£4.28 £3.57
94	MO118550699/0 In stock	Carburettor Gasket Set	£5.22 £4.35

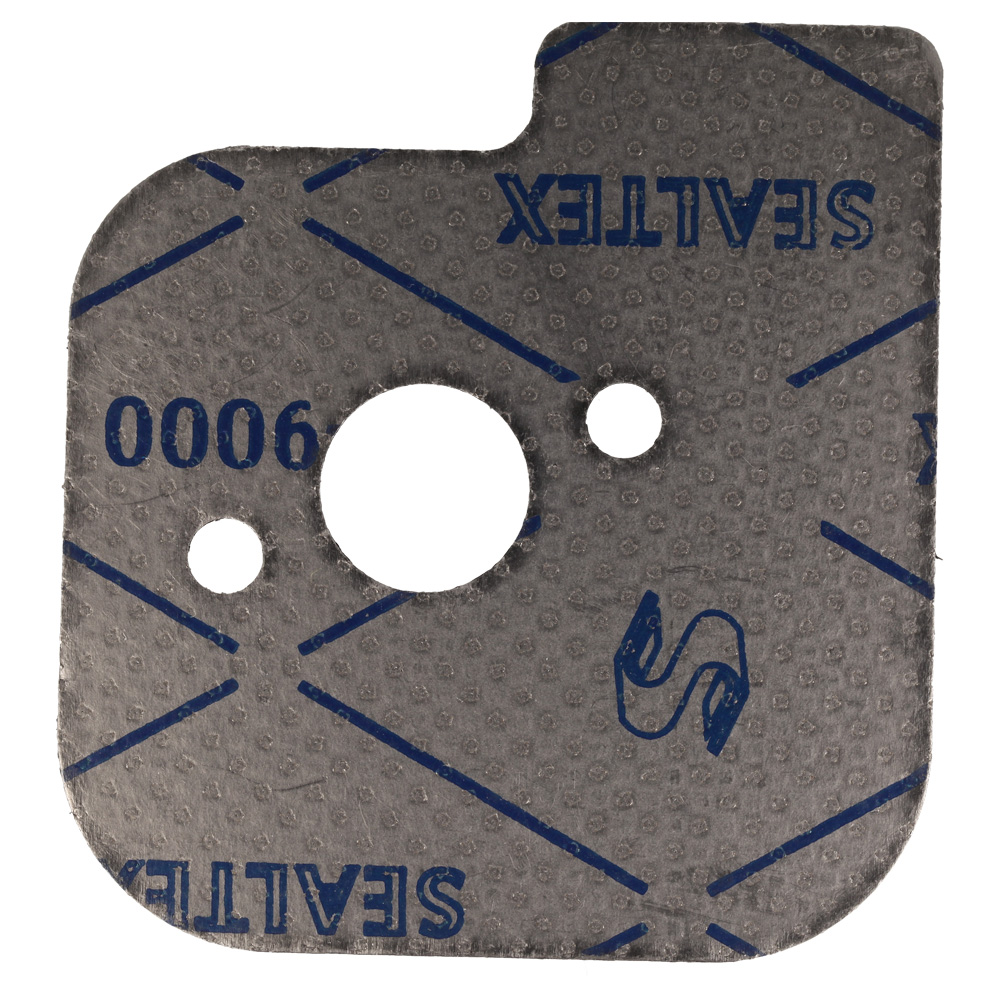

95	MO118550731/0 Out of stock	Cylinder Head Gasket Set	£6.02 £5.02
96	MO118550730/0 Out of stock	Engine Gasket Set	£16.61 £13.84
