RM28 H - 2009 - 2T1534433/09G - Mountfield Ride On Mower Seat Diagram

Name: RM28 H - 2009 - 2T1534433/09G - Mountfield Ride On Mower Seat Diagram
SKU: rm28_h_2t1534433_09g_seat-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

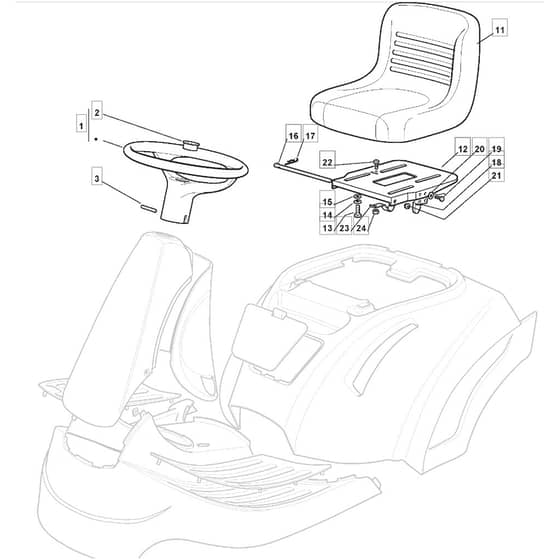

RM28 H - 2009 - 2T1534433/09G - Mountfield Ride On Mower Seat Diagram

Description

Mountfield RM28 H Parts Diagram

Product Name - RM 28 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1534433/09G

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125961217/1 Out of stock	Steering Wheel	£93.73 £78.11
2	MO325120230/0 Out of stock	Cover	£3.06 £2.55
3	MO112620299/0 Out of stock	Elastic Pin	£1.74 £1.45
11	MO125722471/0 Out of stock	Seat	£180.77 £150.64
12	MO325547033/1 Out of stock	Seat Plate To 31-8-2014	£35.65 £29.71
12	MO325547033/2 Out of stock	Seat Plate From 01-9-2014	£38.20 £31.83
13	MO112793101/0 Out of stock	Screw	£1.48 £1.23
14	MO112583500/0 Out of stock	Grower	£1.48 £1.23
15	MO112523060/0 In stock	Washer	£1.48 £1.23
16	MO127864052/1 Out of stock	Seat Fulcrum Rod	£6.29 £5.24
17	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
18	MO327063021/1 Out of stock	Cam	£2.29 £1.91
19	MO112789100/0 Out of stock	Screw	£1.48 £1.23
20	MO112523020/0 Out of stock	Washer	£1.48 £1.23
21	MO112154330/0 Out of stock	Nut	£1.48 £1.23
22	MO125430223/2 Out of stock	Spring From 01-9-2003	£5.89 £4.91
23	MO112789000/0 Out of stock	Screw	£1.48 £1.23
