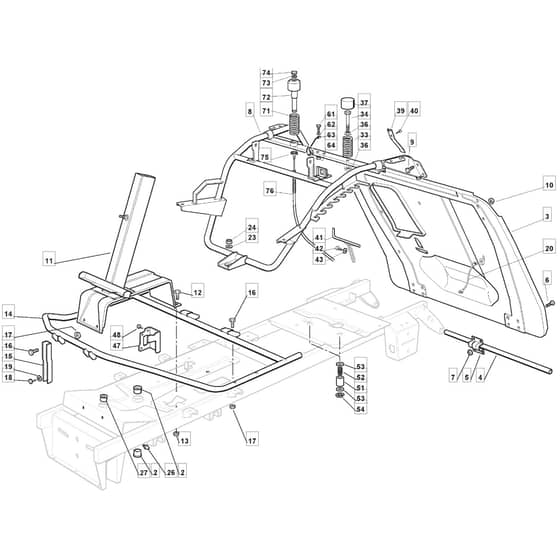

RM28 H - 2009 - 2T1534433/09G - Mountfield Ride On Mower Frame Diagram

Description

Mountfield RM28 H Parts Diagram

Product Name - RM 28 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1534433/09G

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125034002/1 Out of stock	Bushing	£3.61 £3.01
3	MO384545057/3 Out of stock	Rear Plate	£159.13 £132.61
4	MO127037000/1 Out of stock	Rear Plate Fulcrum	£8.44 £7.03
5	MO325547012/1 Out of stock	Plate	£3.95 £3.29
8	MO384801137/0 Out of stock	Upper Seat Frame	£126.04 £105.03
9	MO112792611/0 Out of stock	Screw	£1.48 £1.23
11	MO384783027/0 Out of stock	Steering Column Support	£50.93 £42.44
14	MO384801107/3 Out of stock	Footboard Support	£48.37 £40.31
15	MO327787025/0 Out of stock	Support	£3.06 £2.55
19	MO112521331/0 Out of stock	Washer	£1.48 £1.23
20	MO384040300/0 Out of stock	Rear Plate	£3.18 £2.65
23	MO112523060/0 In stock	Washer	£1.48 £1.23
24	MO112155000/0 In stock	Nut	£1.48 £1.23
26	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
27	MO125034001/0 In stock	Brass	£3.61 £3.01
33	MO127430575/0 Out of stock	Spring	£5.89 £4.91
36	MO112293201/0 In stock	Nut	£1.61 £1.34
37	MO325122000/2 Out of stock	Cap	£1.66 £1.38
39	MO127430600/0 Out of stock	Spring	£2.68 £2.23
40	MO112735110/0 In stock	Screw	£1.48 £1.23
41	MO127294001/0 Out of stock	Rear Conveyor Guide	£19.42 £16.18
42	MO112735120/0 Out of stock	Screw	£1.48 £1.23
43	MO112523040/0 In stock	Washer	£1.48 £1.23
47	MO327772095/0 Out of stock	Micro Handbrake Stirrup Support	£1.66 £1.38
48	MO112735106/0 Out of stock	Screw	£1.48 £1.23
51	MO127047012/0 Out of stock	Fast Release Bush Rider	£12.46 £10.38
52	MO127430577/0 Out of stock	Spring	£5.63 £4.69
53	MO325670008/1 Out of stock	Washer	£1.66 £1.38
54	MO112000955/0 Out of stock	Benzing Ring	£1.27 £1.06
61	MO112791200/1 Out of stock	Screw	£1.34 £1.12
62	MO112521340/0 Out of stock	Washer	£1.34 £1.12
63	MO125430239/1 Out of stock	Spring	£1.87 £1.56
64	MO112292102/0 In stock	Nut	£1.61 £1.34
71	MO127430581/0 Out of stock	Spring	£4.02 £3.35
72	MO384050500/0 Out of stock	Brake Control	£39.47 £32.89
75	MO112609200/0 Out of stock	Seeger	£1.48 £1.23
76	MO184207106/0 Out of stock	Cable	£23.04 £19.20
